Product Summary
The as7c4098a-15ti is a 5V/3.3V 256Kx16 CMOS SRAM. It is designed for memory applications where fast data access, low power, and simple interfacing are desired. It provides multiple center power and ground pins, and separate byte enable controls, allowing individual bytes to be written and read. LB controls the lower bits, I/O1–I/O8, and UB controls the higher bits, I/O9 I/O16. A write cycle is accomplished by asserting write enable (WE) and chip enable (CE).
Parametrics
as7c4098a-15ti absolute maximum ratings: (1)Supply voltage: 4.5 to 5.5 V; (2)Input voltage: 2.2 to VCC+0.5 V; (3)Ambient operating temperature commercial: 0 to 70 °C; (4)Ambient operating temperature: –40 to 85 °C.
Features
as7c4098a-15ti features: (1)Industrial and commercial temperature; (2)Organization: 524,288 words x 8 bits; (3)Center power and ground pins; (4)High speed: 10/12/15/20 ns address access time; (5)- 5/6/7/8 ns output enable access time; (6)ESD protection > 2000 volts; (7)Latch-up current > 100 mA; (8)Individual byte read/write controls; (9)Easy memory expansion with CE, OE inputs; (10)TTL- and CMOS-compatible, three-state I/O.

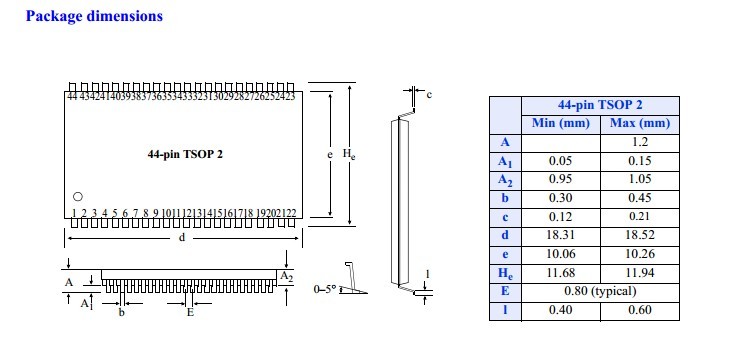

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AS7C4098A-15TIN |
Alliance Memory |
SRAM 4M Fast 256K x 16 5V Asynch |
Data Sheet |
|
|
||||||||||
|
AS7C4098A-15TINTR |
Alliance Memory |
SRAM 4M Fast 256K x 16 5V Asynch |
Data Sheet |
|
|
||||||||||
