Product Summary

The bc546c is a high voltage transistor.

Parametrics

bc546c absolute maximum ratings: (1)VCBO Collector-Base Voltage: 80V; (2)VCEO Collector-Emitter Voltage: 65V; (3)VEBO Emitter-Base Voltage: 65V; (4)IC Collector Current (DC): 100 mA; (5)PC Collector Power Dissipation: 500 mW; (6)TJ Junction Temperature: 150 ℃; (7)TSTG Storage Temperature: -65 ~ 150 ℃.

Features

bc546c features: (1)Transistor Polarity: NPN; (2)Collector Emitter Voltage V(br)ceo: 65V; (3)Transistor Case Style: TO-92; (4)No. of Pins: 3; (5)SVHC: No SVHC (15-Dec-2010); (6)Continuous Collector Current Ic Max: 100mA; (7)Current Ic Continuous a Max: 100mA; (8)Current Ic hFE: 2mA; (9)Gain Bandwidth ft Typ: 300MHz.

Diagrams

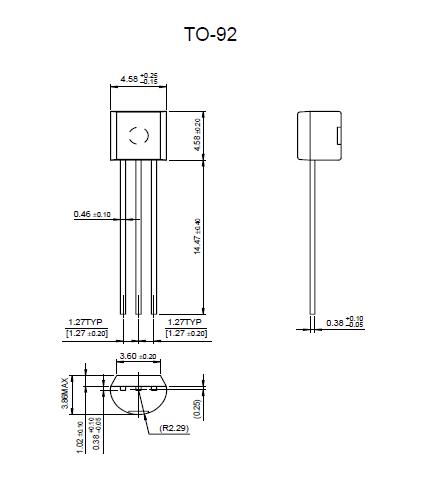

bc546c block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BC546CTA
BC546CTA
Fairchild Semiconductor
Transistors Bipolar (BJT) NPN 65V 100mA HFE/800
Data Sheet
0-1: $0.11
1-25: $0.09
25-100: $0.07
100-250: $0.04
BC546CBU
BC546CBU
Fairchild Semiconductor
Transistors Bipolar (BJT) NPN 65V 100mA HFE/800
Data Sheet
0-1: $0.14
1-25: $0.12
25-100: $0.10
100-250: $0.08
BC546C
BC546C
Other

Data Sheet
Negotiable
