CBT3244APW

cbt3244apw, Octal bus switch, 7 V, 128 mA, SSOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.30~2.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	2.50 / Piece
101 ~ 500 :	2.40 / Piece
501 ~ 1000 :	2.30 / Piece

PartNumber:: CBT3244APW

Brand:: NXP Semiconductors - nxp | Pack: | D/C:

Availability:: Supply Ability: 8000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Dannie's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-08-18

From Other Seller

Part Number:CBT3244APW
US $2.30 - 2.50
Quantity:

piece

Product Summary

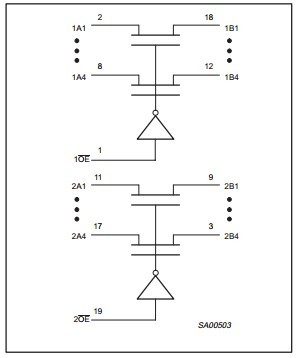

The cbt3244apw is an Octal bus switch with quad output enables. It provides eight bits of high-speed TTL-compatible bus switching in a standard 244 device pinout. The low on-state resistance of the switch allows connections to be made with minimal propagation delay. The cbt3244apw is organized as two 4-bit low-impedance switches with separate output-enable (OE) inputs. When OE is LOW, the switch is on and data can flow from port A to port B, or vice versa. When OE is HIGH, the switch is open and high-impedance state exists between the two ports.

Parametrics

cbt3244apw absolute maximum ratings: (1)VCC DC supply voltage: –0.5 to +7.0 V; (2)I IK DC input diode current VI < 0 V: –18 mA; (3)VI DC input voltage 3: –1.2 to +7.0 V; (4)IOK DC output diode current VO < 0 V: –50 mA; (5)VOUT DC output voltage 3 output in Off or HIGH state: –0.5 to +7 V; (6)IOUT DC output current output in LOW state: 128 mA; (7)Tstg Storage temperature range: –65 to 150 °C.

Features

cbt3244apw features: (1)Standard ’244-type pinout; (2)5 ? switch connection between two ports; (3)TTL compatible control input levels; (4)Package options include plastic small outline (D), shrink small outline (DB), QSOP (DS), and thin shrink small outline (TSSOP); (5)Latch-up protection exceeds 500 mA per JESD78; (6)ESD protection exceeds 1000 V HBM per JESD22-A114, 200 V MM per JESD22-A115 and 1000 V CDM per JESD22-C101.
