Product Summary
The CM400DU-5F is a mitsubishi electric semiconductor.
Parametrics
CM400DU-5F absolute maximum ratings: (1)Collector-emitter voltage: 250 v; (2)Gate-emitter voltage: ±20 v; (3)Collector current: 800 A, 400 A; (4)Emitter current:400 A, 800 A ; (5)Maximum collector dissipation: 890 W; (6)Junction temperature: -40 to 150 ℃; (7)Storage temperature: -40 to 125 ℃; (8)Isolation voltage: 2500 vrms; (9)Torque strength: 3.5 to 4.5 NM; (10)Weight: 400 g.
Features
CM400DU-5F features: (1)ICES: 1 mA; (2)VGE(th): 3.0 to 5.0 V; (3)IGES: 0.5 μA; (4)VCE(sat): 1.2 to 1.7 V; (5)Cies: 110 NF; (6)Coes: 7.0 NF; (7)Cres: 3.8 NF; (8)QG: 1500 NC; (9)tftd(on): 850 NS; (10)tr: 400 NS; (11)td(off): 1100 NS; (12)tf: 500 NS; (13)trr: 300 NS; (14)qrr: 16.0 μC; (15)VEC: 2 V; (16)Rth(j-c’)Q: 0.14 K/W; (17)Rth(j-c)R: 0.24 K/W; (18)Rth(c-f): 0.04 K/W; (19)Rth(j-c’)Q: 0.08 K/W.

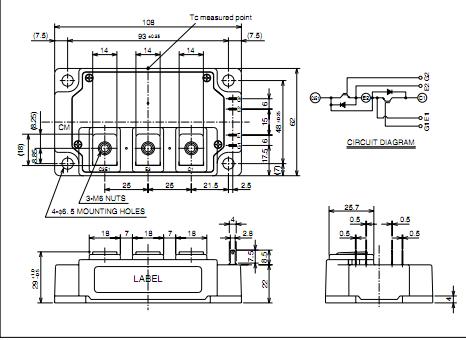

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 CM400DU-5F |
|
IGBT MOD DUAL 250V 400A F SER |
Data Sheet |
|
|
||||||||||||||||
