Product Summary
The cy2071asl-528 is a Single-PLL General-Purpose EPROM Programmable Clock Generator. It is designed for use in applications such as modems, disk drives, CD-ROM drives, video CD players, games, set-top boxes, and data/telecommunications. The cy2071asl-528 offers up to three configurable clock outputs in an 8-pin, 150-mil SOIC package and can operate off either a 3.3V or 5V power supply. The on-chip reference oscillator is designed for 10 MHz to 25 MHz crystals. Alternatively, an external reference clock of frequency between 1 MHz and 30 MHz can be used.
Parametrics
cy2071asl-528 absolute maximum ratings: (1)VDD Analog Supply Voltage: –0.5 to 7.0 V; (2)VIN DC Input Voltage: –0.5 to VDD + 0.5 VDC; (3)TS Temperature, Storage Non-functional: –65 to 150 ℃; (4)TA Temperature, Maximum Soldering (10 sec) Functional: 260℃; (5)TJ Temperature, Junction Functional: 150 ℃; (6)ESDHBM ESD Protection (Human Body Model) MIL-STD-883, Method 3015: 2000 V.
Features
cy2071asl-528 features: (1)single phase-locked loop achitecture; (2)EPROM programmability; (3)factory-programmable device; (4)up to three configurable outputs; (5)low skew, low jitter, high-accuracy outputs; (6)internal loop filter; (7)power management; (8)frequency select options; (9)configurable 5V or 3.3V operation; (10)8-pin 150-mil SOIC package.

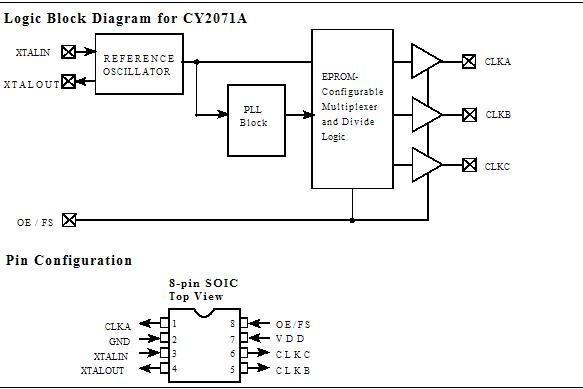

Diagrams
