CY8C24994-24LFXI

cy8c24994-24lfxi, Mixed-Signal Array, -0.5 to +6.0 V, 200 mA, QFN, Cypress Semiconductor

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.30~2.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	2.50 / Piece
101 ~ 500 :	2.40 / Piece
501 ~ 1000 :	2.30 / Piece

PartNumber:: CY8C24994-24LFXI

Brand:: Cypress Semiconductor - Cypress | Pack: | D/C:

Availability:: Supply Ability: 8000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Dannie's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-08-18

From Other Seller

Part Number:CY8C24994-24LFXI
US $2.30 - 2.50
Quantity:

piece

Product Summary

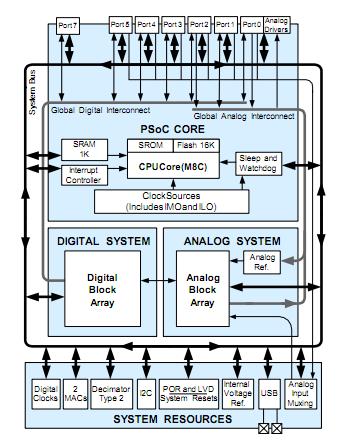

The cy8c24994-24lfxi is a Mixed-Signal Array. The cy8c24994-24lfxi consists of many Mixed-Signal Array with On-Chip Controller devices. The cy8c24994-24lfxi is designed to replace traditional MCUs, system ICs, and the numerous discrete components that surround them. The cy8c24994-24lfxi devices are unique members of the PSoC family because it includes a full-featured, full-speed (12 Mbps) USB port. Configurable analog, digital, and interconnect circuitry enable a high level of integration in a host of industrial, consumer, and communication applications.

Parametrics

cy8c24994-24lfxi absolute maximum ratings: (1)TSTG, Storage Temperature: -55 to +100 ℃; (2)TA, Ambient Temperature with Power Applied: -40 to +85 ℃; (3)Vdd, Supply Voltage on Vdd Relative to Vss: -0.5 to +6.0 V; (4)VIO, DC Input Voltage Vss: - 0.5 to Vdd + 0.5 V; (5)VIO2, DC Voltage Applied to Tri-state Vss: - 0.5 to Vdd + 0.5 V; (6)IMIO, Maximum Current into any Port Pin: -25 to +50 mA; (7)IMAIO, Maximum Current into any Port Pin Configured as Analog; (8)Driver: -50 to +50 mA; (9)ESD, Electro Static Discharge Voltage: 2000 V; (10)LU, Latch-up Current: 200 mA.

Features

cy8c24994-24lfxi features: (1)Powerful Harvard Architecture Processor; (2)Advanced Peripherals (PSoC Blocks); (3)Full-Speed USB (12 Mbps); (4)Flexible On-Chip Memory; (5)Programmable Pin Configurations; (6)Precision, Programmable Clocking; (7)Additional System Resources; (8)Complete Development Tools.
