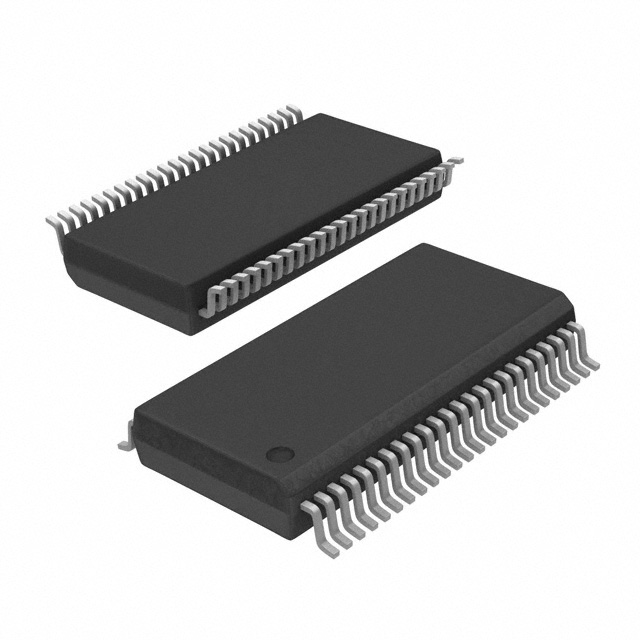

CY8C26643-24PVI

Programmable System-on-Chip (PSoC) microcontroller, -0.5 to +6.0 V, -50 to +50 mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.20~2.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	2.50 / Piece
101 ~ 800 :	2.40 / Piece
801 ~ 1600 :	2.20 / Piece

PartNumber:: CY8C26643-24PVI

Brand:: Cypress Semiconductor - Cypress | Pack: | D/C:

Availability:: Supply Ability: 8000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Dannie's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-23

From Other Seller

Part Number:CY8C26643-24PVI
US $2.20 - 2.50
Quantity:

piece

Product Summary

The cy8c26643-24pvi is a Programmable System-on-Chip (PSoC) microcontroller. The cy8c26643-24pvi replaces multiple MCU-based system components with one single-chip, programmable device. A PSoC microcontroller includes a fast CPU, Flash program memory, and SRAM data memory with configurable analog and digital peripheral blocks in a range of convenient pin-outs and memory sizes. The driving force behind this innovative Programmable System-on-Chip comes from user configurability of analog and digital arrays: the PSoC blocks.

Parametrics

cy8c26643-24pvi absolute maximum ratings: (1)Storage Temperature: -65 to +100 oC; (2)Ambient Temperature with Power Applied: -40 to +85 oC; (3)Supply Voltage on VCC Relative to Vss: -0.5 to +6.0 V; (4)DC Input Voltage: -0.5 - Vcc+0.5 V; (5)DC Voltage Applied to Tri-state: Vss-0.5 to Vcc+0.5 V; (6)Maximum Current into any Port Pin: -25 to +50 mA; (7)Maximum Current into any Port Pin Configured as Analog Driver: -50 to +50 mA; (8)Junction Temperature: 100 oC; (9)Static Discharge Voltage: 2000 V; (10)Latch-up Current: 200mA.

Features

cy8c26643-24pvi features: (1)M8C processor instruction set; (2)Processor speeds to 24 MHz; (3)Register speed memory transfers; (4)Flexible addressing modes; (5)Bit manipulation on I/O and memory; (6)8x8 multiply, 32-bit accumulate; (7)Schmitt trigger TTL I/O pins; (8)Logic output drive to 25 mA with internal pull-up or pull-down resistors, High Z, or strong driver; (9)Interrupt on pin change; (10)Analog output drive to 40 mA; (11)Flash program storage, 4K to 16K bytes, depending on device; (12)50,000 erase/write cycles; (13)256 bytes SRAM data storage; (14)In-System Serial Programming (ISSP); (15)Partial Flash updates; (16)Flexible protection modes; (17)EEPROM emulation in Flash, up to 2,304 bytes.
