Product Summary

The d2-92633-lr is an Intelligent Digital Amplifier and Sound Processor.

Parametrics

d2-92633-lr absolute maximum ratings: (1)Supply Voltage RVDD, PWMVDD, ADCVDD: -0.3V to 4.0V; (2)Supply Voltage CVDD, PLLVDD: -0.3V to 2.4V; (3)Input Voltage Any Input but XTALI: -0.3V to RVDD +0.3V; (4)Input Voltage XTALI: -0.3V to PLLVDD +0.3V; (5)Input Current, Any Pin but Supplies: ±10mA; (6)ESD Rating Human Body Model (Tested per JESD22-A114F): 2000V; (7)ESD Rating Machine Model (Tested per JESD22-A115C): 200V; (8)ESD Rating Charged Device Model (Tested per JESD22-C101E): 750V; (9)Latch-up: 100mA.

Features

d2-92633-lr features: (1)iSim Design Simulation; (2)Technical Documentation; (3)Tools And Support; (4)Pricing / Samples; (5)Related Devices.

Diagrams

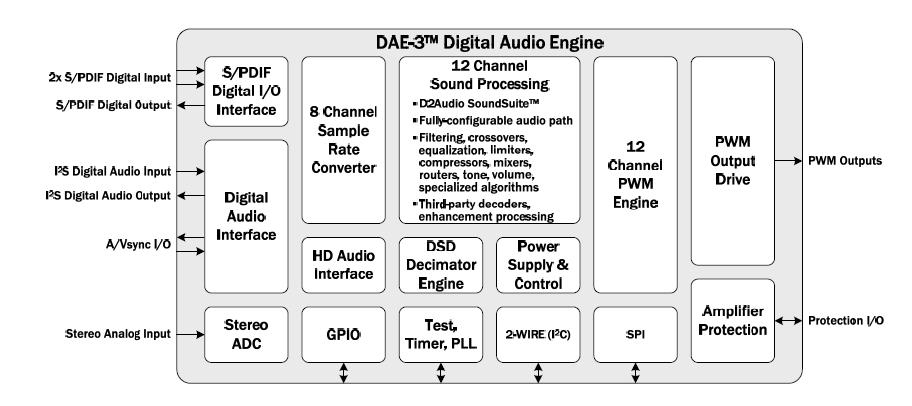

d2-92633-lr block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
D2-92633-LR
D2-92633-LR


IC DGTL AMP INTELLIGENT 128LQFP

Data Sheet

0-900: $5.76
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
D2-92633-LR
D2-92633-LR


IC DGTL AMP INTELLIGENT 128LQFP

Data Sheet

0-900: $5.76
D2-92634-LR
D2-92634-LR


IC DGTL AMP INTELLIGENT 128LQFP

Data Sheet

0-900: $6.05
