Product Summary

The dhrb34a102m2bb is a High Voltage Ceramic Capacitor. The applications of the dhrb34a102m2bb include Color TV doublers and triplers, High voltage DC power supplies, Tuning capacitor in focus circuit for display.

Parametrics

dhrb34a102m2bb absolute maximum ratings: (1)Operating Temperature Range: -25 to +100 ℃; (2)Capacitance Within the specified tolerance; (3)Dissipation Factor: 1.0% max; (4)Insulation Resistance: 10000 MΩ min.; (5)Dielectric Strength: No failure; (6)Temperature Characteristic: -4700 to ±1000 ppm/℃.

Features

dhrb34a102m2bb features: (1)Small size; (2)Excellent heat-proof, humidity-proof and high-dielectric strength voltage; (3)Coated with flame-retardant epoxy resin.

Diagrams

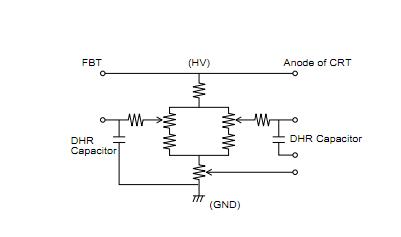

dhrb34a102m2bb block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
DHRB34A102M2BB
DHRB34A102M2BB
Murata
Ceramic Disc Capacitors .375LS 1000PF 10KV 20%
Data Sheet
0-1: $1.00
1-50: $0.70
50-100: $0.55
100-150: $0.49
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
DHRB34A101M2BB
DHRB34A101M2BB
Murata
Ceramic Disc Capacitors 100pF +/-20% DC10k volt
Data Sheet
0-1: $0.48
1-10: $0.43
10-100: $0.37
100-500: $0.31
DHRB34A102M2BB
DHRB34A102M2BB
Murata
Ceramic Disc Capacitors .375LS 1000PF 10KV 20%
Data Sheet
0-1: $1.00
1-50: $0.70
50-100: $0.55
100-150: $0.49
DHRB34A221M2BB
DHRB34A221M2BB
Murata
Ceramic Disc Capacitors 220pF +/-20% DC10k volt
Data Sheet
0-1: $0.50
1-10: $0.44
10-100: $0.35
100-500: $0.32
DHRB34A471M1CB
DHRB34A471M1CB
Murata
Ceramic Disc Capacitors 470pF +/-20% DC 10k volt
Data Sheet
Negotiable
DHRB34C681M2BB
DHRB34C681M2BB
Murata
Ceramic Disc Capacitors 680pF 15000Volts 20%
Data Sheet
0-1: $1.19
1-50: $0.83
50-100: $0.65
100-500: $0.49
DHRB34B221M2BB
DHRB34B221M2BB
Murata
Ceramic Disc Capacitors 220pF 12000Volts 20%
Data Sheet
0-1: $0.54
1-10: $0.41
10-100: $0.38
100-500: $0.35
