Product Summary
The dib7070pb1 is a precise AC/DC over current Monitoring Relay. Direct measuring or through current transformer. Owing to the built-in latch function, the ON-position of the relay output can be maintained. The red LED of the dib7070pb1 indicates the relay status. Through the built-in shunt the dib7070pb1 is possible to monitor loads up to 5 A AC/DC.
Parametrics
dib7070pb1 absolute maximum ratings: (1)Measuring range: 0.5 to 5 A; (2)Internal resist: 0.05 Ω; (3)AACrms: 5 to 50 A; (4)Max. curr.: 6 A; (5)DC supply: 2 kV.
Features
dib7070pb1 features: (1)AC/DC over current monitoring relay ; (2)Current measured through internal shunt; (3)Measuring range 0.5 to 5 A AC/DC; (4)Adjustable current limit on relative scale; (5)Adjustable hysteresis; (6)Programmable latching at set level; (7)Output: 8 A SPDT relay normally de-energized; (8)For mounting on DIN-rail in accordance with DIN/EN 50 022 (DIA01) or plug-in module (PIA01); (9)22.5 mm Euronorm housing (DIA01) or 36 mm plug-in module (PIA01); (10)LED indication for relay and power supply ON; (11)Galvanically separated power supply.

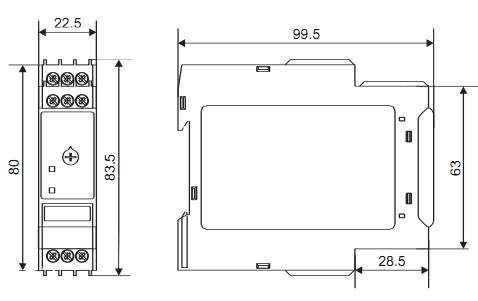

Diagrams
