Product Summary

The dp8311n is an Octal Latched Peripheral Driver. The dp8311n provides the function of latching eight bits of data with open collector outputs, each driving up to 100 mA DC with an operating voltage range of 30V. The device of the dp8311n is designed for low input currents, high input/output voltages, and feature a power up clear (outputs off) function. The applications of the dp8311n include High current high voltage drivers, Relay drivers, Lamp drivers, LED drivers TRIAC drivers, Solenoid drivers, Stepper motor drivers, Level translators, Fiber-optic LED drivers.

Parametrics

dp8311n absolute maximum ratings: (1)Supply Voltage: 7.0V; (2)Input Voltage: 35V; (3)Output Voltage: 35V; (4)Maximum Power Dissipation: 2005 mW; (5)Storage Temperature Range: -65 ℃ to +150 ℃; (6)Lead Temperature (Soldering, 4 sec.): 260 ℃.

Features

dp8311n features: (1)High current, high voltage open collector outputs; (2)Low current, high voltage inputs; (3)All outputs simultaneously sink rated current“DC” with no thermal derating at maximum rated temperature; (4)Parallel latching or buffering; (5)Separate active low enables for easy data bussing; (6)Internal “glitch free” power up clear; (7)10% VCC tolerance.

Diagrams

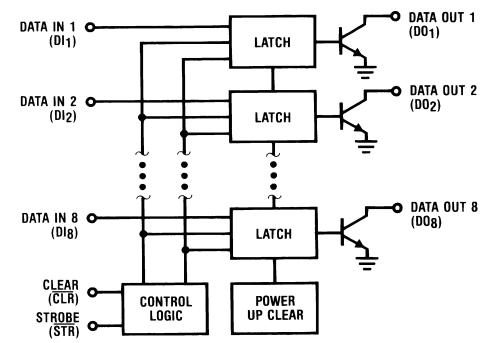

dp8311n block diagram
