Product Summary
The ecs-d480a is a SAW FILTER.
Parametrics
ecs-d480a absolute maximum ratings: (1)Center Frequency: 479.0 to 481.0 MHz; (2)Insertion Loss: 19.5 to 21 dB; (3)3 dB Pass Band: 16.6 to 18.6 MHz; (4)Relative Attenuation: 3.4 to 5.4 dB; (5)Amplitude Ripple: 0.3 to 0.6 dB; (6)Group Delay: 281.0 nS; (7)Group Delay Ripple: 11.5 to 18.0 ns; (8)Terminating Impedance, Input: 70W/3.7 pF; (9)Frequency Stability: -86 ppm/℃ ; (10)Operating Temperature: -25 to +85 ℃; (11)Storage Temperature: -40 to +85 ℃.

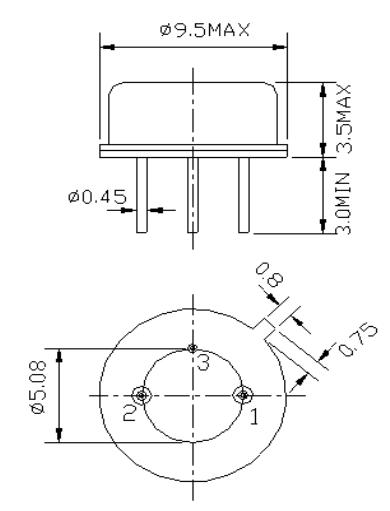

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

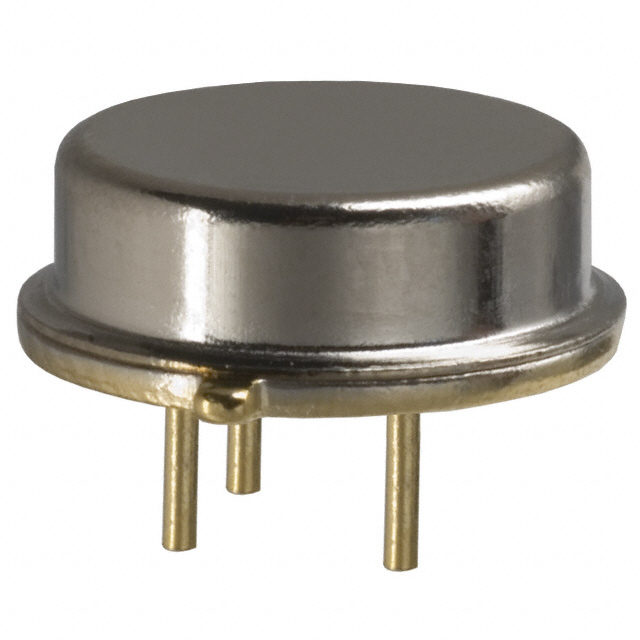

 ECS-D480A |
|
SAW FILTER 480.0MHZ |
Data Sheet |
|
|
||||||||||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||||||||||
 |

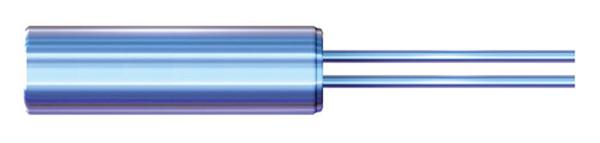

ECS-.320-12.5-13 |
