Product Summary

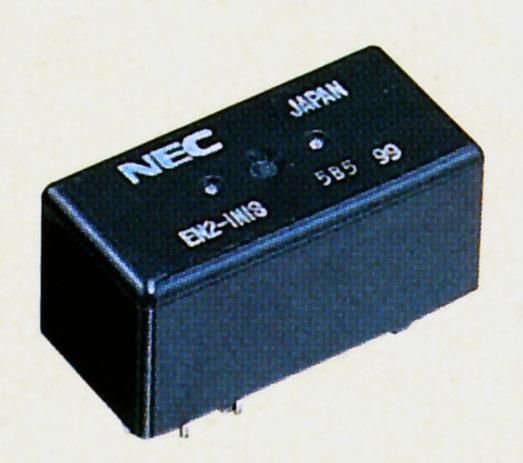

The en2-1n1s is an automotive twin relay which can meet the requirements of high quality and reliability in automotive eIectronics applications. The en2-1n1s is the twin relays which have two units in one package and smaller than conventional two relays. The Een2-1n1s is suitable for heavy load applications (35 A max.). The en2-1n1s has been used in automotive electronics applications throughout the world.
Parametrics
en2-1n1s absolute maximum ratings: (1)Nominal voltage: 12VDC; (2)Coil resistance: 125Ω + 10%; (3)Nominal current: 96.0mA; (4)Must operate voltage: 6.5VDC max.; (5)Must release voltage: 0.6VDC min.; (6)Operate Voltage (at 25℃): 6.5 V max.; (7)Nominal operate power: 1.15W.
Features
en2-1n1s features: (1)Twin relay for motor and solenoid reversible control; (2)30% Iess relay space than conventional two relays; (3)Contact switching current of 35 A max.; (4)High performance and productivity by unique symmetrical structure; (5)Flux tight housing; (6)Delivered in stick-tube for automatic insertion machine; (7)Washable type available.

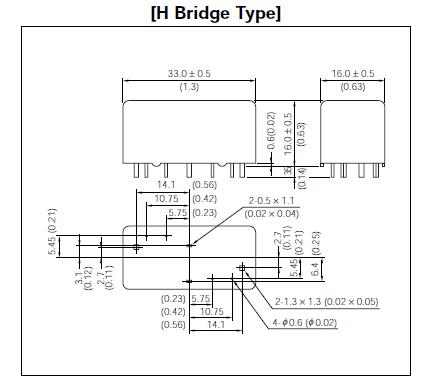

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 EN2-1N1S |
NEC |
General Purpose / Industrial Relays 1 FORM C X2 BRIDGE |
Data Sheet |
Negotiable |
|
||||
|
EN2-1N1ST |
NEC |
General Purpose / Industrial Relays 1 FORM C X2 SEPARATE |
Data Sheet |
Negotiable |
|
||||
