Product Summary
The gsc351-hyb1900 is a 9GHz Band 90Deg. chip hybrid coupler.The gsc351-hyb1900 can be used for RF power amplifier (base station).
Parametrics
gsc351-hyb1900 absolute maximum ratings: (1)Impedance: 50 ohm Nominal; (2)Frequency Range: 1800-2000MHz; (3)Average Coupling Insertion Loss: 0.2dB max (Typ. 0.16dB); (4)Amplitude Level Balance: 0.2dB max. (S21-S31); (5)Phase Balance: 90+/-2 Degrees; (6)V.S.W.R: 1.18 max ; (7)Isolation: 23dB min.; (8)Input Power: 200W Avg/CW; (9)Operating Temperature: -40 up to 125 Deg.C; (10)Storage Temperature: -40 up to 85 Deg.C.
Features
gsc351-hyb1900 features: compact & high power capability.

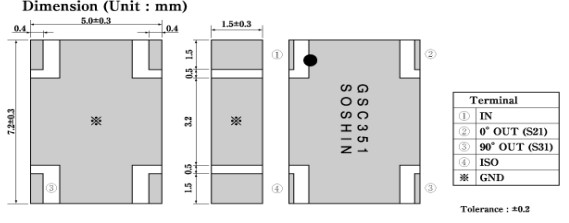

Diagrams
