Product Summary

The hlmp-6825 is a subminiature t-3/4 5-volt resistor lamp. The hlmp-6825 is based LEDs contain an integral resistor which is in series with the emitter chip. This construction of the The hlmp-6825 allows for the operation in circuits with 5V supply voltage; without the use of an external resistor.

Parametrics

hlmp-6825 absolute maximum ratings: (1)Power dissipation: 135 mW; (2)DC forward voltage: 6 V; (3)Lead soldering time at: 3 sec; (4)Surface mount reflow soldering convective IR at 235 ℃: 90 Seconds; (5)Operating temperature range: -40 to 85 ℃; (6)Storage temperature range: -55 to 100 ℃.

Features

hlmp-6825 features: (1)Integral current limiting resistor; (2)TTL compatible; (3)Wide viewing angle; (4)Solid-state reliability; (5)SMT lead formings and T&R available.

Diagrams

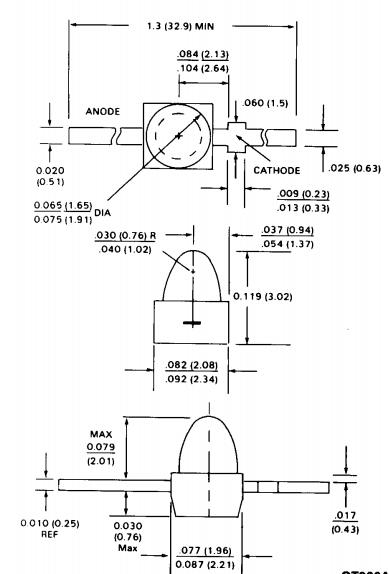

hlmp-6825 block diagram
