Product Summary
The ics342m-12lf is a low cost, dual-output, field programmable clock synthesizer. The ics342m-12lf can generate two output frequencies from 250 kHz to 200 MHz, using up to two independently configurable PLLs. The outputs of the ics342m-12lf may employ Spread Spectrum techniques to reduce system electro-magnetic interference (EMI).
Parametrics
ics342m-12lf absolute maximum ratings: (1)Supply Voltage, VDD, Referenced to GND: 7 V; (2)Inputs, Referenced to GND: -0.5 to VDD+ 0.5 V; (3)Clock Outputs, Referenced to GND: -0.5 to VDD+ 0.5 V; (4)Storage Temperature: -65 to 150 ℃; (5)Soldering Temperature, Max 10 seconds: 260 ℃; (6)Junction Temperature: 125 ℃.
Features
ics342m-12lf features: (1)8-pin SOIC package; (2)Highly accurate frequency generation M/N Multiplier PLL: M = 1...2048, N = 1...1024; (3)Output clock frequencies up to 200 MHz; (4)Two ROM locations for frequency and spread selection; (5)Spread spectrum capability for lower system EMI, Center or Down Spread up to 4% total, Selectable 32 kHz or 120 kHz modulation; (6)Input crystal frequency from 5 to 27 MHz; (7)Input clock frequency from 2 to 50 MHz; (8)Operating voltage of 3.3 V; (9)Advanced, low power CMOS process; (10)For one output clock, use the ICS341, For three output clocks, see the ICS343, For more than three utputs, see the ICS345 or ICS348; (11)Available in Pb (lead) free packaging.

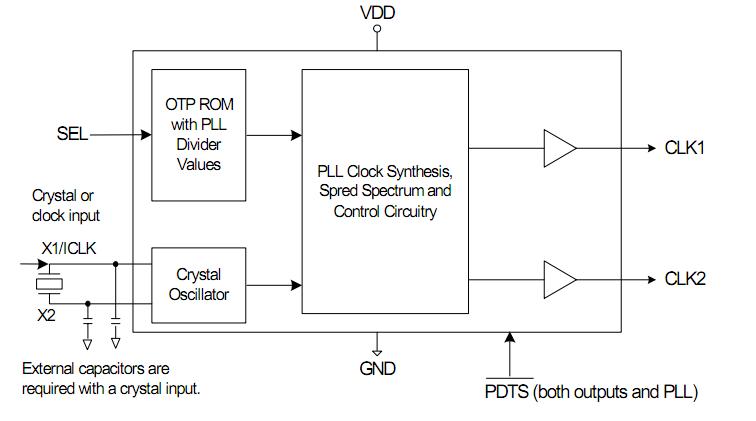

Diagrams
