Product Summary

The im3i-g1004gav is a Precision Micropower Shunt Voltage Reference. The im3i-g1004gav precision voltage reference is available in the sub-miniature SC70 and SOT-23 surface-mount packages. The im3i-g1004gav advanced design eliminates the need for an external stabilizing capacitor while ensuring stability with any capacitive load, thus making the im3i-g1004gav easy to use. Further reducing design effort is the availability of a fixed (1.225V) and adjustable reverse breakdown voltage. The minimum operating current is 60 μA for the LM4041-1.2 and the LM4041-ADJ. Both versions have a maximum operating current of 12 mA. It is ideal for: (1)Portable, Battery-Powered Equipment; (2)Data AcquisitioSystems; (3)Instrumentation; (4)Process Control; (5)Energy Management; (6)Automotive; (7)PrecisioAudio Components.

Parametrics

im3i-g1004gav absolute maximum ratings: (1)Reverse Current: 20 mA; (2)Forward Current: 10 mA; (3)Maximum Output Voltage (LM4041-ADJ): 15V; (4)Power Dissipation (TA = 25°C)(Note 2)Z Package: 550 mW; (5)Storage Temperature: -65°C to +150°C; (6)Lead Temperature M3 Packages Vapor phase (60 seconds): +215°C; (7)Infrared (15 seconds): +220°C.

Features

im3i-g1004gav features: (1)Small packages: SOT-23, TO-92, and SC70; (2)No output capacitor required; (3)Tolerates capacitive loads; (4)Reverse breakdowvoltage options of 1.225V and adjustable.

Diagrams

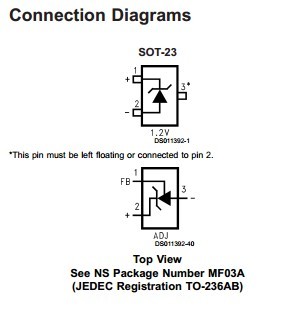

im3i-g1004gav pin connection
