Product Summary
The irls4030-7ppbf is a HEXFET Power MOSFET. The applications of the irls4030-7ppbf include DC Motor Drive, High Efficiency Synchronous Rectification in SMPS, Uninterruptible Power Supply, High Speed Power Switching, Hard Switched and High Frequency Circuits.
Parametrics
irls4030-7ppbf absolute maximum ratings: (1)Continuous Drain Current, VGS @ 10V: 190 A; (2)Pulsed Drain Current: 750 A; (3)Maximum Power Dissipation: 370 W; (4)Linear Derating Factor: 2.5 W/℃ ; (5)Gate-to-Source Voltage: ±16 V; (6)Peak Diode Recovery: 13 V/ns; (7)Operating Junction and Storage Temperature Range: -55 to +175 ℃; (8)Soldering Temperature, for 10 seconds: 300; (9)Mounting torque, 6-32 or M3 screw: 10 lbin.
Features
irls4030-7ppbf features: (1)Optimized for Logic Level Drive; (2)Very Low RDS(ON) at 4.5V VGS; (3)Superior R*Q at 4.5V VGS; (4)Improved Gate, Avalanche and Dynamic dV/dt Ruggedness; (5)Fully Characterized Capacitance and Avalanche SOA; (6)Enhanced body diode dV/dt and dI/dt Capability; (7)Lead-Free.

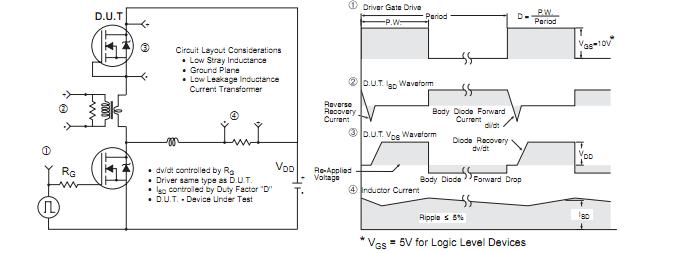

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 IRLS4030-7PPBF |
International Rectifier |
MOSFET |
Data Sheet |
|
|
||||||||||||
