Product Summary

The irm3638n3 is a miniature type infrared remote control system receiver. The irm3638n3 has been developed and designed by utilizing the most updated ICtechnology. The PIN diode and preamplifier are assembled on lead frame, the epoxy package is designed as an IR filter. The demodulated output signal can directly be decoded by a microprocessor. The applications of the irm3638n3 include Optical switch, AV instruments such as Audio, TV, VCR, CD, MD, etc., Home appliances such as Air-conditioner, Fan, etc. The other equipments with wireless remote control. CATV set top boxes, Multi-media Equipment.

Parametrics

irm3638n3 absolute maximum ratings: (1)Supply Voltage, Vcc: 0 to 6 V; (2)Operating Temperature, Topr: -25 to +85 ℃; (3)Storage Temperature, Tatg: -40 to +85 ℃; (4)Soldering Temperature, Tsol: 260 ℃.

Features

irm3638n3 features: (1)High protection ability against EMI; (2)Circular lens to improve the receive characteristic; (3)Line-up for various center carrier frequencies; (4)Low voltage and low power consumption; (5)High immunity against ambient light; (6)Photodiode with integrated circuit; (7)TTL and CMOS compatibility; (8)Long reception distance; (9)High sensitivity; (10)Pb free.

Diagrams

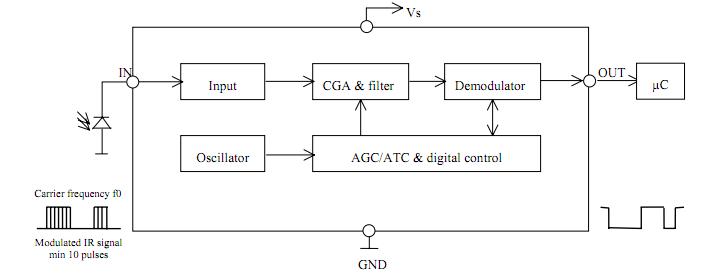

irm3638n3 block diagram
