Product Summary

The jqx-68f 24vdc is a miniature high power relay.



Parametrics

jqx-68f 24vdc absolute maximum ratings: (1)Initial Contact Resistance Max: 100m (at 1A 6VDC); (2)Contact Rating (Res. Load): 8A 250VAC; (3)Max. switching voltage: 440VAC; (4)Max. switching current: 10 A; (5)Max. switching power: 2000VA; (6)UL/CUR rating: 8A 250VAC; (7)VDE rating: 8A 250VAC; (8)Mechanical life: 1 x 107 OPS.

Features

jqx-68f 24vdc features: (1)low height 12.3 mm; (2)8a switching capabilities; (3)5kv dielectric coil to contacts; (4)creepage distance 8mm; (5)sealed & unsealed type available.

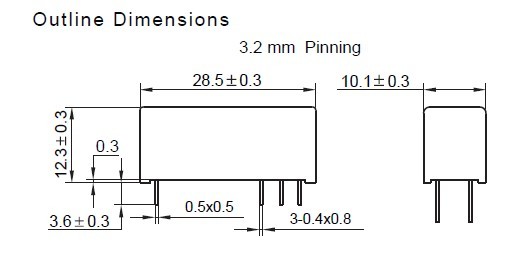

Diagrams

jqx-68f 24vdc pin connection
