Product Summary
The k2400e70 is a silicon bilateral voltage triggered switch with greater power-handling capabilities than standard diacs. Upon application of a voltage exceeding the sidac breakover voltage point, the k2400e70 switches on through a negative resistance region to a low on-state voltage. Conduction continues until the current is interrupted or drops below the minimum holding current of the device. The k2400e70 features glass-passivated junctions to ensure a rugged and dependable device capable of withstanding harsh environments. Variations of devices covered in this data sheet are available for custom design applications. Consult the factory for more information. Applications are (1)High-voltage lamp ignitors; (2)Natural gas ignitors; (3)Gas oil ignitors; (4)High-voltage power supplies; (5)Xenon ignitors; (6)Overvoltage protector; (7)Pulse generators; (8)Fluorescent lighting ignitors; (9)HID lighting ignitors.
Parametrics
k2400e70 absolute maximum ratings: (1)IT(RMS): 1A; (2)VDRM: 190V; (3)VDRM: 220 TO 250V; (4)IDRM: 5μA; (5)IBO: 10μA; (6)IH: 60 to 150mA.
Features
k2400e70 features: (1)RoHS Compliant; (2)AC circuit oriented; (3)Glass-passivated junctions; (4)High surge current capability.

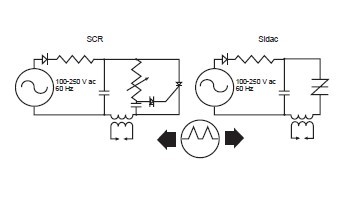

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 K2400E70 |
Littelfuse |
Sidacs 240V |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
|
K2400E70 |
Littelfuse |
Sidacs 240V |
Data Sheet |
|
|
||||||||||||
|
K2400EH70 |
Littelfuse |
Sidacs Sidac 240V HI ENERGY |
Data Sheet |
|
|
||||||||||||
|
K2400EH70AP |
Littelfuse |
Sidacs Sidac 240V HI ENERGY |
Data Sheet |
|
|
||||||||||||
|
K2400EH70RP2 |
Littelfuse |
Sidacs Sidac 240V HI ENERGY |
Data Sheet |
|
|
||||||||||||
 |
K2400EH70RP3 |
|
SIDAC 240V 1A TO-92 |
Data Sheet |
|
|
||||||||||||
|
K2400F1 |
Littelfuse |
Sidacs 240V |
Data Sheet |
Negotiable |
|
||||||||||||
