Product Summary
The k6r4008c1c-ji15 is a 4,194,304-bit high-speed Static Random Access Memory organized as 524,288 words by 8 bits. The k6r4008c1c-ji15 uses 8 common input and output lines and has an output enable pin which operates faster than address access time at read cycle. The k6r4008c1c-ji15 is fabricated using SAMSUNG’s advanced CMOS process and designed for high-speed circuit technology. The k6r4008c1c-ji15 is particularly well suited for use in high-density high-speed system applications. The k6r4008c1c-ji15 is packaged in a 400 mil 36-pin plastic SOJ and 44-pin plastic TSOP type II.
Parametrics
k6r4008c1c-ji15 absolute maximum ratings: (1)Voltage on Any Pin Relative to VSS, VIN, VOUT: -0.5 to VCC+0.5 V; (2)Voltage on VCC Supply Relative to VSS, VCC: -0.5 to 7.0 V; (3)Power Dissipation, PD: 1.0 W; (4)Storage Temperature, TSTG: -65 to 150 ℃; (5)Operating Temperature Commercial, TA: 0 to 70 ℃.
Features
k6r4008c1c-ji15 features: (1)Fast Access Time 10,12,15 ns(Max.); (2)Low Power Dissipation; (3)Standby (TTL): 60 mA(Max.); (4)Single 5.0 V±10 % Power Supply; (5)TTL Compatible Inputs and Outputs; (6)I/O Compatible with 3.3 V Device; (7)Fully Static Operation; (8)Three State Outputs; (9)Center Power/Ground Pin Configuration; (10)Standard Pin Configuration.

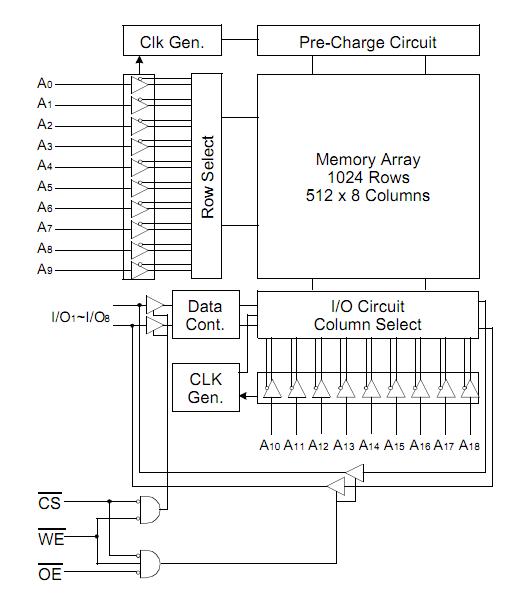

Diagrams
