KS8995MA

Product Summary

The KS8995MA is a highly integrated Layer 2 managed switch with optimized bill of materials (BOM) cost for low port count, cost-sensitive 10/100Mbps switch systems. It also provides an extensive feature set such as tag/port-based VLAN, quality of service (QoS) priority, management, MIB counters, dual MII interfaces and CPU control/data interfaces to effectively address both current and emerging Fast Ethernet applications. The KS8995MA contains five 10/100 transceivers with patented mixed-signal low-power technology, five media access control (MAC) units, a high-speed non-blocking switch fabric, a dedicated address lookup engine, and an on-chip frame buffer memory. All PHY units support 10BASE-T and 100BASE-TX. In addition, two of the PHY units support 100BASE-FX (ports 4 and 5). Applications are (1)Broadband gateway/firewall/VPN; (2)Integrated DSL or cable modem multi-port router; (3)Wireless LAN access point plus gateway; (4)Home networking expansion; (5)Standalone 10/100 switch; (6)Hotel/campus/MxU gateway; (7)Enterprise VoIP gateway/phone; (8)FTTx customer premise equipment; (9)Managed media converter.

Parametrics

KS8995MA absolute maximum ratings: (1)Supply voltage (VDDAR, VDDAP, VDDC): –0.5V to +2.4V; (VDDAT, VDDIO): –0.5V to +4.0V; (2)Input voltage: –0.5V to +4.0V; (3)Output voltage: –0.5V to +4.0V; (4)Lead temperature (soldering, 10 sec.): 270°C; (5)Storage temperature (TS): –55°C to +150°C.

Features

KS8995MA features: (1)Integrated switch with five MACs and five Fast Ethernet transceivers fully compliant to IEEE 802.3u standard; (2)Shared memory based switch fabric with fully nonblocking configuration; (3)1.4Gbps high-performance memory bandwidth; (4)10BASE-T, 100BASE-TX, and 100BASE-FX modes (FX in ports 4 and 5); (5)Dual MII configuration: MII-Switch (MAC or PHY mode MII)and MII-P5 (PHY mode MII); (6)IEEE 802.1q tag-based VLAN (16 VLANs, full-range VID)for DMZ port, WAN/LAN separation or inter-VLAN switch links; (7)VLAN ID tag/untag options, per-port basis; (8)Programmable rate limiting 0Mbps to 100Mbps, ingress and egress port, rate options for high and low priority, per-port basis in 32Kbps increments; (9)Flow control or drop packet rate limiting (ingress port); (10)Integrated MIB counters for fully compliant statistics gathering, 34 MIB counters per port.

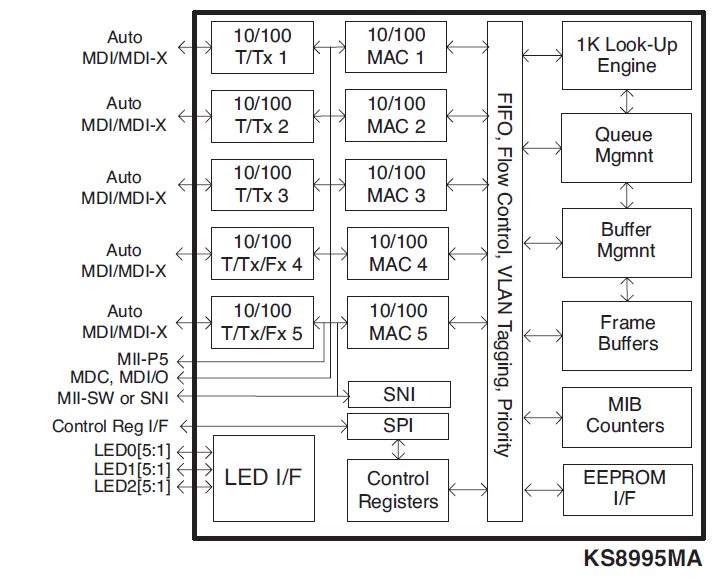

Diagrams
