LPC1768FET100

Product Summary

The LPC1768FET100 is an ARM Cortex-M3 based microcontroller for embedded applications featuring a high level of integration and low power consumption. The ARM Cortex-M3 is a next generation core that offers system enhancements such as enhanced debug features and a higher level of support block integration. The LPC1768FET100 operate at CPU frequencies of up to 100 MHz. The ARM Cortex-M3 CPU incorporates a 3-stage pipeline and uses a Harvard architecture with separate local instruction and data buses as well as a third bus for peripherals. The ARM Cortex-M3 CPU also includes an internal prefetch unit that supports speculative branching. Applications are (1)eMetering; (2)Alarm systems; (3)Lighting; (4)White goods; (5)Industrial networking; (6)Motor control.

Parametrics

LPC1768FET100 absolute maximum ratings: (1)VDD(3V3), supply voltage (3.3 V)external rail: 2.4 to 3.6 V; (2)VDD(REG)(3V3), regulator supply voltage (3.3 V): 2.4 to 3.6 V; (3)VDDA, analog 3.3 V pad supply voltage: -0.5 to +4.6 V; (4)Vi(VBAT), input voltage on pin VBAT for the RTC: -0.5 to +4.6 V; (5)Vi(VREFP), input voltage on pin VREFP: -0.5 to +4.6 V; (6)VIA, analog input voltage on ADC related pins: -0.5 to +5.1 V; (7)VI, input voltage 5 V tolerant I/O pins; only valid when the VDD(3V3)supply voltage is present [2]: -0.5 to +5.5 V, other I/O pins [2][3]: -0.5 to VDD(3V3)+ 0.5 V; (8)IDD, supply current per supply pin [4]: 100 mA; (9)ISS, ground current per ground pin [4]: 100 mA; (10)Ilatch I/O, latch-up current -(0.5VDD(3V3))< VI < (1.5VDD(3V3)); Tj < 125 °C: 100 mA; (11)Tstg, storage temperature [5]: -65 to +150 °C; (12)Ptot(pack), total power dissipation (per package)based on package heat transfer, not device power consumption: 1.5 W; (13)VESD, electrostatic discharge voltage human body model; all pins [6]: -4000 to +4000 V.

Features

LPC1768FET100 features: (1)ARM Cortex-M3 processor, running at frequencies of up to 100 MHz or of up to 120 MHz. A Memory Protection Unit (MPU)supporting eight regions is included; (2)ARM Cortex-M3 built-in Nested Vectored Interrupt Controller (NVIC); (3)Up to 512 kB on-chip flash programming memory. Enhanced flash memory accelerator enables high-speed 120 MHz operation with zero wait states; (4)In-System Programming (ISP)and In-Application Programming (IAP)via on-chip bootloader software; (5)On-chip SRAM includes: 32/16 kB of SRAM on the CPU with local code/data bus for high-performance CPU access.

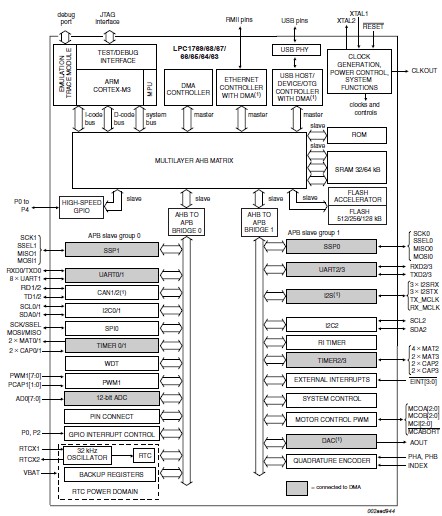

Diagrams
