Product Summary

The lwv18c is a Bright LED Lead (Pb). The applications of the lwv18c include flat backlighting (LCD, cellular phones, switches, displays), toys, signal and symbol luminary, marker lights (e.g. steps, exit ways, etc.).

Parametrics

lwv18c absolute maximum ratings: (1)Operating temperature range, Top: –30 to + 85 ℃; (2)Storage temperature range, Tstg: –40 to + 85 ℃; (3)Sperrschichttemperatur Junction temperature, Tj: +95 ℃; (4)Durchlassstrom Forward current (TA=25 ℃ ), IF: 20 mA; (5)Stoβstrom Surge current, IFM: 200 mA; (6)Sperrspannung, VR: 5 V; (7)Leistungsaufnahme Power consumption, Ptot: 38 mW; (8)Warmewiderstand Thermal resistance, RthJA: 520 K/W.

Features

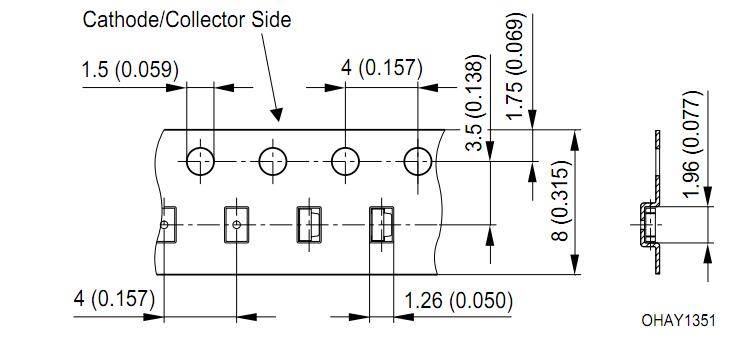

lwv18c features: (1)package: SMT package, colored diffused resin; (2)feature of the device: compact package; side emitting LED; 1,8 × 1,1 × 0,5 mm (L × W × H); (3)color coordinates: x = 0.30, y = 0.28 acc. to CIE 1931 (white); (4)typ. color temperature: 8200 K; (5)color reproduction index: 80; (6)viewing angle: horizontal 130°, vertical 180°; (7)technology: InGaN; (8)optical efficiency: 16 lm/W; (9)grouping parameter: luminous intensity, color coordinates, forward voltage; (10)assembly methods: suitable for all SMT assembly methods; (11)soldering methods: IR reflow soldering; (12)preconditioning: acc. to JEDEC Level 2; (13)taping: 8 mm tape with 5.000/reel, Φ180 mm; (14)ESD-withstand voltage: up to 2 kV acc. to JESD22-A114-D.

Diagrams

lwv18c block diagram
