Product Summary
The m5010044 is a Power Module.
Parametrics
m5010044 absolute maximum ratings:(1)Maximum DC Output Current (Tc = 85°C)ID: 100 A; (2)Maximum Voltage Drop @ Amps Peak VF: 1.4V @ 100A; (3)Operating Junction Temperature Range TJ: -40 - 125°C; (4)Critical Rate of Rise of On-State Current @ TJ=125°C di/dt: 100A/μs; (5)Critical Rate of Rise of Off-State Voltage [V/μs] dv/dt: 500V/μs; (6)Repetitive Peak Reverse Voltage (AC Line Nominal)[Vpk] VRRM: 1200 (480 VAC); (7)Maximum Non-Repetitive Surge Current (1/2 Cycle, 60 Hz)[A] ITSM: 1500; (8)Maximum I2T for Fusing (t=8.3ms)[A2sec] I 2 T: 9350; (9)Maximum Required Gate Current to Trigger @ 25°C [mA] IGT: 150; (10)Maximum Required Gate Voltage to Trigger @ 25°C [V] VGT: 3.0; (11)Average Gate Power [W] PG(AV): 0.5; (12)Maximum Peak Reverse Gate Voltage [V] VGM: 5.0; (13)Maximum Thermal Resistance, Junction to Ceramic Base per Chip [°C/W] RJC: 0.7°C/W; (14)Isolation Voltage [Vrms] VISOL: 2500 .
Features
m5010044 features: (1)Over 40KW output Capability; (2)8 Different Circuits to Choose from; (3)50 and 100A outputs.

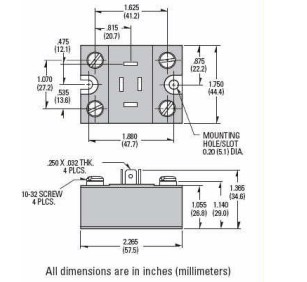

Diagrams
