MAX1241ACSA+

max1241acsa+, ADC, 6V, 727mW, 12-bit, DIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.20~2.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	2.50 / Piece
101 ~ 800 :	2.40 / Piece
801 ~ 1600 :	2.20 / Piece

PartNumber:: MAX1241ACSA+

Brand:: Dallas Semiconductor - Maxim | Pack: | D/C:

Availability:: Supply Ability: 8000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Dannie's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-23

From Other Seller

Part Number:MAX1241ACSA+
US $2.20 - 2.50
Quantity:

piece

Product Summary

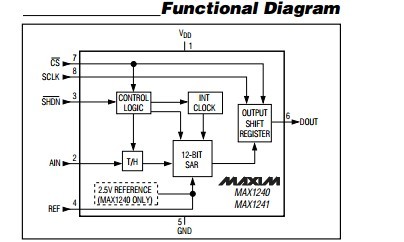

The max1241acsa+ is a low-power, 12-bit analog-todigital converter (ADC). The max1241acsa+ available in 8-pin packages. The max1241acsa+ operates with a single +2.7V to +3.6V supply, and the MAX1241 operates with a single +2.7V to +5.25V supply. Both devices feature a 7.5μs successive-approximation ADC, a fast track/hold (1.5μs), an on-chip clock, and a high-speed, 3-wire serial interface. Applications are (1)Battery-powered systems; (2)Portable data logging; (3)Isolated data acquisition; (4)Process control; (5)Instrumentation.

Parametrics

max1241acsa+ absolute maximum ratings: (1)VDD to GND: -0.3V to +6V; (2)AIN to GND: -0.3V to (VDD + 0.3V); (3)REF to GND : -0.3V to (VDD + 0.3V); (4)Digital inputs to GND: -0.3V to +6V; (5)DOUT to GND: -0.3V to (VDD + 0.3V); (6)DOUT current: ±25mA; (7)Continuous power dissipation (TA = +70°C)plastic DIP (derate 9.09mW/°C above +70°C): 727mW; (8)SO (derate 5.88mW/°C above +70°C): 471mW; (9)CERDIP (derate 8.00mW/°C above +70°C): 640mW; (10)Storage temperature range: -60°C to +150°C; (11)Lead temperature (soldering, 10s): +300°C.

Features

max1241acsa+ features: (1)Single-supply operation: +2.7V to +3.6V (MAX1240); +2.7V to +5.25V (MAX1241); (2)12-bit resolution; (3)Internal 2.5V reference (MAX1240); (4)Small footprint: 8-pin DIP/SO packages; (5)Low power: 3.7μs;W (73ksps, MAX1240): 3mW (73ksps, MAX1241); 66μs;W (1ksps, MAX1241); 5μs;W (power-down mode).; (6)Internal track/hold; (7)SPI/QSPI/MICROWIRE 3-wire serial interface; (8)Internal clock.
