Product Summary
The mc14502bdw is a strobed hex buffer/inverter with 3–state outputs, an inhibit control, and guaranteed TTL drive over the temperature range. The 3–state output simplifies design by allowing a common bus.
Parametrics
mc14502bdw absoltute maximum ratings: (1)VDD DC Supply Voltage:- 0.5 to + 18.0V; (2)Vin, Vout Input or Output Voltage (DC or Transient): -0.5 to VDD + 0.5V; (3)Iin Input Current (DC or Transient), per Pin: ±10mA; (4)Iout Output Current (DC or Transient), per Pin: + 30mA; (5)PD Power Dissipation, per Packag: 500mW; (6)Tstg Storage Temperature: -65 to + 150; (7)TL Lead Temperature (8-econd Soldering): 260℃.
Features
mc14502bdw features: (1)Separate Output Disable Control; (2)3-state Output; (3)Supply Voltage Range = 3.0 Vdc to 18 Vdc; (4)Capable of Driving 4LSTTL Loads Over the Rated Temperature Range.

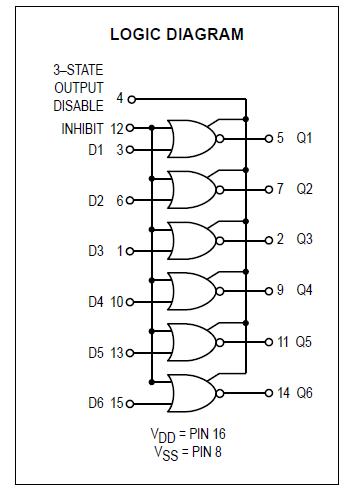

Diagrams
