Product Summary

The MCR310-10 is a silicon controlled rectifier.

Parametrics

MCR310-10 absolute maximum ratings: (1)Peak repetitive forward and reverse blocking voltage(1)(TJ = -40 to 110°C)(1/2 sine wave, RGK = 1 kΩ): 800 Volts; (2)On-State RMS current (TC = 75°C): 10 Amps; (3)Peak non-repetitive surge current (1/2 cycle, 60 Hz, TJ = -40 to 110°C): 100 Amps; (4)Circuit fusing (t = 8.3 ms): 40 A2s; (5)Peak gate voltage (t ≤ 10 μs): ±5 Volts; (6)Peak gate current (t ≤ 10 μs): 1 Amp; (7)Peak gate power (t ≤ 10 μs): 5 Watts; (8)Average gate power: 0.75 Watt; (9)Operating junction temperature range: -40 to +110 °C; (10)Storage temperature range: -40 to +150 °C.

Features

MCR310-10 features: (1)Center gate geometry for uniform current density; (2)All diffused and glass-passivated junctions for parameter uniformity and stability; (3)Small, rugged, thermowatt construction for low thermal resistance, high heat dissipation and durability; (4)Low trigger currents, 200 μA maximum for direct driving from integrated circuits; (5)Pb-Free packages are available.

Diagrams

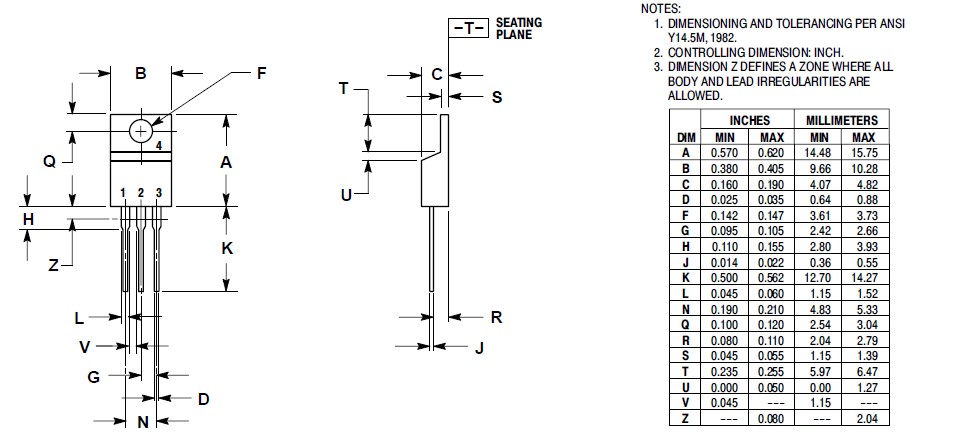

MCR310-10 pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MCR310-10
MCR310-10
Other

Data Sheet
Negotiable
MCR310-10G
MCR310-10G
ON Semiconductor
SCRs 800V 10A
Data Sheet
0-1: $0.86
1-25: $0.72
25-100: $0.57
100-500: $0.49
