Product Summary
The mcz33399efr2 Local Interconnect Network (LIN) is a serial communication protocol designed to support automotive networks in conjunction with Controller Area Network (CAN). As the lowest level of a hierarchical network, LIN enables cost-effective communication with sensors and actuators when all the features of CAN are not required. The mcz33399efr2 is a Physical Layer component dedicated to automotive sub-bus applications. It offers speed communication from 1.0 kbps to 20 kbps, and up to 60 kbps for Programming Mode. It has two operating modes: Normal and Sleep.
Parametrics
mcz33399efr2 absolute maximum ratings: (1)dc voltage vbus: -18 to 40 V; (2)INH Voltage/Durrent VINH: -0.3 to VSUP+0.3 V; (3)Ambient TA: -40 to 125°C; (4)Storage Temperature TSTG: -55 to 165°C; (5)Themal Resistance Junction to Ambient RθJA: 150 °C/W; (6)Thermal Shutdown TSHUT: 150 to 200°C; (7)Thermal Shutdown Hysteresis THYST: 8.0 to 20°C.
Features
mcz33399efr2 features: (1)Nominal Operation from VSUP 7.0 V to 18 V DC, Functional up to 27 V DC Battery Voltage and Capable of Handling 40 V During Load Dump; (2)Active Bus Waveshaping to Minimize Radiated Emission; (3)±5.0 kV ESD on LIN Bus Pin, ±4.0 kV ESD on Other Pins; (4)30kΩ Internal Pullup Resistor; (5)Ground Shift Operation and Ground Disconnection Fail-Safe at Module Level; (6)An Unpowered Node Does Not Disturb the Network; (7)20μA in Sleep Mode; (8)Wake-Up Capability from LIN Bus, MCU Command and Dedicated High Voltage Wake-Up Input (Interface to External Switch); (9)Interface to MCU with CMOS-Compatible I/O Pins; (10)Control of External Voltage Regulator; (11)Pb-FREE packaging designated by package code EF .

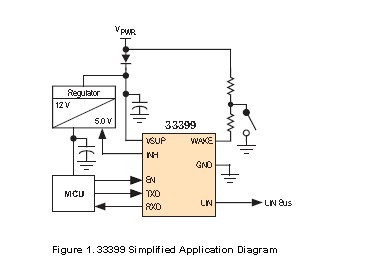

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MCZ33399EFR2 |
Freescale Semiconductor |
I/O Controller Interface IC LIN INTERFACE |
Data Sheet |
Negotiable |
|
||||
