Product Summary
The MDT10P73K is an EPROM-Based 8-bit micro-controller. The MDT10P73K uses a fully static CMOS technology process to achieve higher speed and smaller size with the low power consumption and high noise immunity. On chip memory includes 4K words of ROM, and 192 bytes of static RAM. The application areas of the MDT10P73K range from appliance motor control and high speed auto-motive to low power remote transmitters/receivers, pointing devices, and telecommunications processors, such as Remote controller, small instruments, chargers, toy, automobile and PC peripheral … etc.
Features
MDT10P73K features: (1)Fully CMOS static design; (2)8-bit data bus; (3)On chip EPROM size: 4.0 K words; (4)Internal RAM size: 192 bytes; (5)37 single word instructions; (6)14-bit instructions; (7)8-level stacks; (8)Operating voltage: 2.5 V ~ 5.5 V (PRD Disable)4.5 V ~ 5.5 V (PRD Enable); (9)Operating frequency: DC ~ 20 MHz; (10)The most fast execution time is 200 ns under 20 MHz in all single cycle instructions except the branch instruction; (11)Addressing modes include direct, indirect and relative addressing modes; (12)Power-on Reset; (13)Power edge-detector Reset.

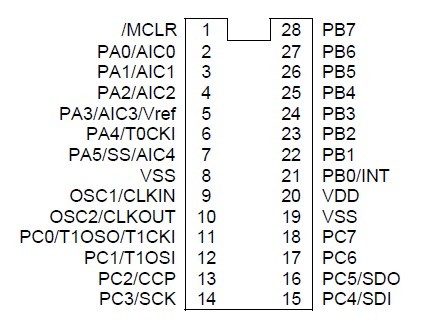

Diagrams
