MIC2253-06YML

mic2253-06yml, 12-Pin 3x3 MLF, 3.5A 1MHz high efficiency boost regulator, 12V, 2kV

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.30~2.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	2.50 / Piece
101 ~ 500 :	2.40 / Piece
501 ~ 1000 :	2.30 / Piece

PartNumber:: MIC2253-06YML

Brand:: Micrel Semiconductor - Micrel | Pack: | D/C:

Availability:: Supply Ability: 8000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Dannie's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-10-21

From Other Seller

Part Number:MIC2253-06YML
US $2.30 - 2.50
Quantity:

piece

Product Summary

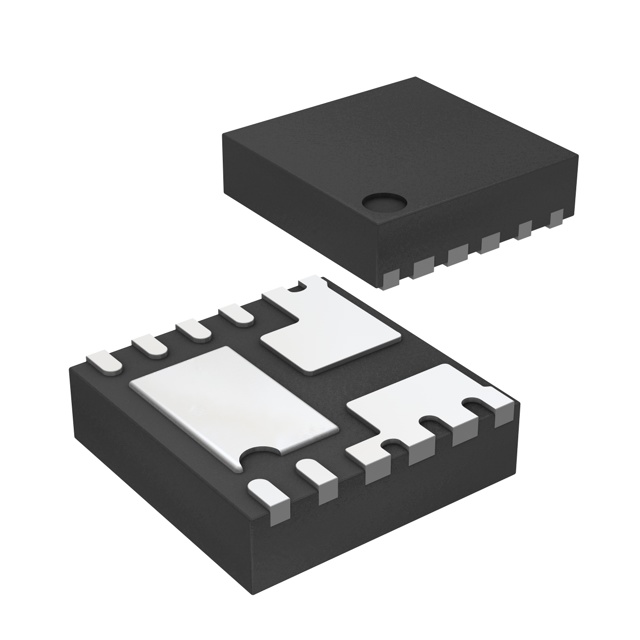

The mic2253-06yml is a high power density 1MHz PWM DC/DC boost regulator. The 3.5A minimum switch current limit combined with a 1MHz switching frequency allows the mic2253-06yml to use smaller inductors and deliver high power in a tiny solution size. The 2.5V to 10V input voltage range of mic2253-06yml allows direct operation from 1 and 2 cell Li-ion as well as 3 to 4 cell NiCad, NiMH, Alkaline or lithium batteries. Maximum battery life is assured with a low 0.1μA shutdown current. The mic2253-06yml is available in a low profile 12-pin 3mm x 3mm MLF package. To prevent a high inrush current, a minimum 1ms soft-start period is set by default and the mic2253-06yml has the ability to extend the soft-start period with an external capacitor.

Parametrics

mic2253-06yml absolute maximum ratings: (1)Supply Voltage (VIN): 12V ; (2)Switch Voltage (VSW): -0.3V to 34V ; (3)Enable Voltage (VEN): -0.3V to 12V ; (4)FB Voltage (VFB): 6V ; (5)Switch Current (ISW): Internally Limited ; (6)Ambient Storage Temperature (Ts): –65°C to +150°C; (7)ESD Rating: 2kV.

Features

mic2253-06yml features: (1)3.5A minimum switch current ; (2)1.245V ±3% feedback voltage ; (3)2.5V to 10V input voltage ; (4)Output over-voltage protection (OVP) ; (5)Externally programmable soft-start ; (6)Output voltage up to 30V (max) ; (7)Fixed 1MHz operation ; (8)<1% line regulation ; (9)0.1μA shutdown current ; (10)Over temperature protection ; (11)Under-voltage lockout (UVLO; (12)–40°C to +125°C junction temperature range.
