Product Summary
The mp4203 is a Hammer drive, pulse motor drive and inductive load switching.
Parametrics
mp4203 absolute maximum ratings: (1)Drain-source voltage: -60V; (2)Gate-source voltage: ±20V; (3)Drain current: -5A; (4)Peak Drain Current: -10A; (5)Drain power dissipation: 2.0W; (6)Channel Temperature: 150℃; (7)Storage temperature range: -55 to 150℃.
Features
mp4203 features: (1)4V gate drive available; (2) Small package by full molding; (3) high collector power dissipation: 4W; (4) Low drain-source ON resistance: RDS (ON)=0.3Ω; (5)Low leakage current; (6)Enhancement-mode.

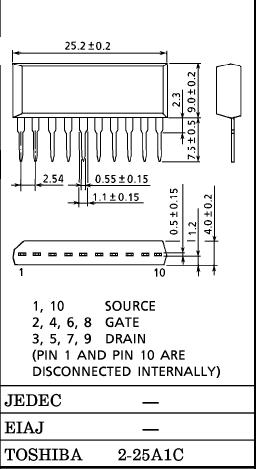

Diagrams
