MP4305

mp4305, Transistor Module, -100 V, -0.5 A, SIP, Toshiba Semiconductor

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.30~2.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	2.50 / Piece
101 ~ 500 :	2.40 / Piece
501 ~ 1000 :	2.30 / Piece

PartNumber:: MP4305

Brand:: Toshiba Semiconductor - Toshiba | Pack: | D/C:

Availability:: Supply Ability: 8000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Dannie's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-08-18

From Other Seller

Part Number:MP4305
US $2.30 - 2.50
Quantity:

piece

Product Summary

The mp4305 is a Transistor Module. The applications of the mp4305 include High Power Switching Applications, Hammer Drive, Pulse Motor Drive and Inductive Load Switching.

Parametrics

mp4305 absolute maximum ratings: (1)Collector-base voltage, VCBO: -100 V; (2)Collector-emitter voltage, VCEO: -100 V; (3)Emitter-base voltage, VEBO: -6 V; (4)Collector current DC, IC: -5 A; (5)Collector current Pulse, ICP: -8 A; (6)Continuous base current, IB: -0.5 A; (7)Collector power dissipation, PC: 2.2 W; (8)Collector power dissipation, PT: 4.4 W; (9)Junction temperature, Tj: 150 ℃; (10)Storage temperature range, Tstg: -55 to 150 ℃.

Features

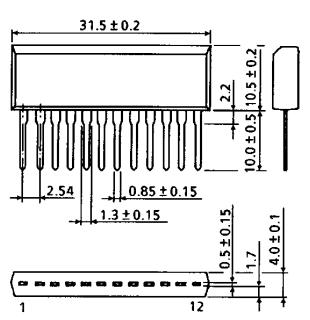

mp4305 features: (1)Small package by full molding (SIP 12 pin); (2)High collector power dissipation: PT = 4.4 W (Ta = 25℃ ); (3)High collector current: IC (DC) = -5 A (max); (4)High DC current gain: hFE = 2000 (min) (VCE = -5 V, IC = -3 A); (5)Diode included for absorbing fly-back voltage.
