Product Summary

The mt6250da is a 150V npn silicon low saturation transistor. It is ideal for: (1)DC-DC Modules; (2)Power Management Functions; (3)Motor control and drive functions .



Parametrics

mt6250da absolute maximum ratings: (1)Collector-Base Voltage VCBO: 150 V; (2)Collector-Emitter Voltage VCEO: 150 V; (3)Emitter-Base Voltage VEBO: 5 V; (4)Continuous Collector Current IC: 1 A; (5)Peak Pulse Current (Note 4)ICM: 3 A; (6)Base Current IB: 500 mA.

Features

mt6250da features: (1)VCEO = 150V; (2)IC = 1A; (3)625mW Power dissipation; (4)Low Equivalent On Resistance; (5)Low Saturation Voltage; (6)hFE characterised up to 3.0A; (7)Lead, Halogen and Antimony Free, RoHS Compliant (Note 1); (8)“Green” Devices (Note 2).

Diagrams

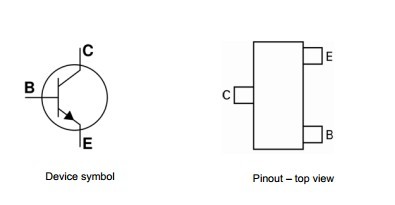

mt6250da pin connection
