Product Summary

The mur1660 is an ultrafast rectifier 8.0 AMPERE, 100-600 VOLT. The mur1660 is designed for use in switching power supplies, inverters and as free wheeling diodes. The mur1660 has the following main features: Ultrafast 35 and 60 Nanosecond Recovery Times, 175°C Operating Junction Temperature, Popular TO-220 Package, High Voltage Capability to 600V, Pb-Free Packages are Available.

Parametrics

mur1660 absolute maximum ratings: (1) Peak Repetitive Reverse Voltage, Vrrm: 600V; (2) Working Peak Reverse Voltage Vrwm: 600V; (3) DC Blocking Voltage Vr: 600V; (4) Average Rectified Forward Current Per Leg IF (AV) : 8.0A; (5) Total Device, (Rated Vr) , T=50°C, IF (AV) : 16A; (6) Peak Rectified Forward Current(Rated VR , Square Wave, 20kHz), TC=150°C, IFM: 16A; (7) Nonrepetitive Peak Surge Current (Surge applied at rated load conditions halfwave, single phase, 60Hz) IFSM: 100A; (8) Operating Junction Temperature and Storage Temperature Tj, Tstg: -65°C to +175°C.

Features

mur1660 features: (1) Ultrafast 35 and 60 Nanosecond Recovery Times; (2) 175°C Operating Junction Temperature; (3) Popular TO-220 Package; (4)Epoxy Meets UL 94 V-0 @ 0.125 in; (5) High Temperature Glass Passivated Junction; (6) High Voltage Capability to 600 V; (7) Low Leakage Specified @ 150°C Case Temperature; (8)Current Derating @ Both Case and Ambient Temperatures; (9) Pb-Free Packages are Available.

Diagrams

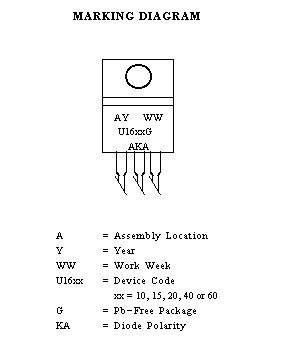

mur1660 pin connection
