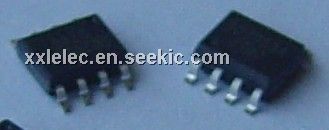

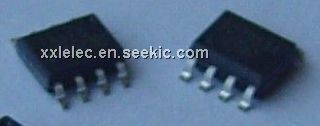

NCP301LSN31T1G

ncp301lsn31t1g, second generation ultra-low current voltage detector, 12 V, 70 mA, TSOP,ON SEMICONDUCTOR

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.30~2.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	2.50 / Piece
101 ~ 500 :	2.40 / Piece
501 ~ 1000 :	2.30 / Piece

PartNumber:: NCP301LSN31T1G

Brand:: ON SEMICONDUCTOR - ONS | Pack: | D/C:

Availability:: Supply Ability: 8000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Dannie's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-08-18

From Other Seller

Part Number:NCP301LSN31T1G
US $2.30 - 2.50
Quantity:

piece

Product Summary

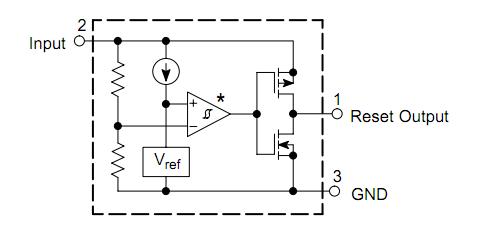

The ncp301lsn31t1g is a second generation ultra-low current voltage detector. The ncp301lsn31t1g is specifically designed for use as reset controllers in portable microprocessor based systems where extended battery life is paramount. The ncp301lsn31t1g features a highly accurate undervoltage detector with hysteresis which prevents erratic system reset operation as the comparator threshold is crossed. The applications of the ncp301lsn31t1g include Microprocessor Reset Controller, Low Battery Detection, Power Fail Indicator, Battery Backup Detection.

Parametrics

ncp301lsn31t1g absolute maximum ratings: (1)Input Power Supply Voltage (Pin 2), Vin: 12 V; (2)Output Voltage (Pin 1) Complementary, VOUT: -0.3 to Vin +0.3 V; (3)Output Current (Pin 1) (Note 2), IOUT: 70 mA; (4)Thermal Resistance Junction-to-Air, RJA: 250 ℃/W; (5)Maximum Junction Temperature All NCP Options, TJ: +125 ℃; (6)Operating Ambient Temperature Range, TA: -40 to +85 ℃; (7)Storage Temperature Range, Tstg: -55 to +150 ℃; (8)Moisture Sensitivity Level, MSL: 1; (9)Latchup Performance (Note 3), ILATCHUP: 200 mA.

Features

ncp301lsn31t1g features: (1)Quiescent Current of 0.5 μA Typical; (2)High Accuracy Undervoltage Threshold of 2.0%; (3)Wide Operating Voltage Range of 0.8 V to 10 V; (4)Complementary or Open Drain Reset Output; (5)Active Low or Active High Reset Output; (6)Specified Over the -40 ℃ to +125 ℃ Temperature Range; (7)Pb-Free Packages are Available.
