Product Summary

The ne5533an is a dual and single high-performance low noise operational amplifier. Compared to other operational amplifiers, such as TL083, they show better noise performance, improved output drive capability and considerably higher small-signal and power bandwidths. It is ideal for: (1)Audio equipment; (2)Instrumentation and control circuits; (3)Telephone channel amplifiers; (4)Medical equipment.



Parametrics

ne5533an absolute maximum ratings: (1)VS Supply voltage: ±22 V; (2)VIN Input voltage: ±V supply V; (3)VDIFF Differential input voltage 1: ±0.5 V; (4)TA Operating temperature range SE: -55 to +125 °C; (5)TSTG Storage temperature range: -65 to +150 °C; (6)TJ Junction temperature: 150 °C; (7)PD Power dissipation at 25°C2 16N Pkg: 1500 mW; (8)TSOLD Lead soldering temperature (10sec max): 300 °C.

Features

ne5533an features: (1)Small-signal bandwidth: 10MHz; (2)Output drive capability: 600?, 10VRMS at VS=±18V; (3)Input noise voltage: 4nV Hz; (4)DC voltage gain: 100000; (5)AC voltage gain: 6000 at 10kHz; (6)Power bandwidth: 200kHz; (7)Slew rate: 13V/μs; (8)Large supply voltage range: ±3 to ±20V.

Diagrams

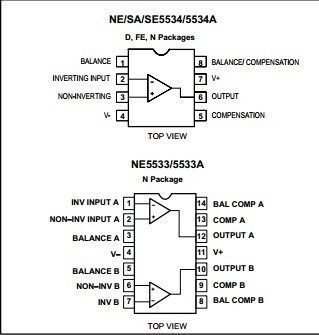

ne5533an pin connection
