Product Summary

The nju6436f a1008c is a 1/4 duty LCD driver for segment type LCD panel withkey scanning, lr receiving and LED driving function. The nju6436f a1008c consists of 4-common and 60-segment drives up to 240 segments and LED driver drives 1 LED which can use like as power on indicator.

Parametrics

nju6436f a1008c absolute maximum ratings: (1)Operating voltage, VDD: -0.3 to +7.0 V; (2)Operating voltage, VLCD: VDD-13.5 to VDD+0.3 V; (3)Input voltage, VIN: -0.3 to VDD+0.3 V; (4)Operating temperature, TOPR: -30 to +85 ℃; (5)Storage temperature, TSTG: -40 to +125 ℃.

Features

nju6436f a1008c features: (1)60-segment drivers; (2)Duty ratio 1/4 duty; (3)30 key scan function; (4)Serial data transmission; (5)Power-on initialization; (6)Display off function; (7)LED drive function; (8)LR receiving function; (9)Operating voltage; (10)Package outline; (11)C-MOS technology.

Diagrams

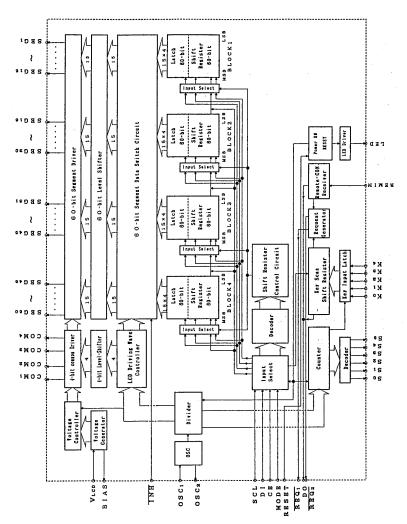

nju6436f a1008c block diagram
