PS21867-P

PS21867-P, dual-in-line package intelligent power module, 2500 V, 2.2 KW, 30 A, DIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.30~2.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	2.50 / Piece
101 ~ 500 :	2.40 / Piece
501 ~ 1000 :	2.30 / Piece

PartNumber:: PS21867-P

Brand:: Mitsumi Electronics, Corp. - Mitsumi | Pack: | D/C:

Availability:: Supply Ability: 8000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Dannie's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-08-18

From Other Seller

Part Number:PS21867-P
US $2.30 - 2.50
Quantity:

piece

Product Summary

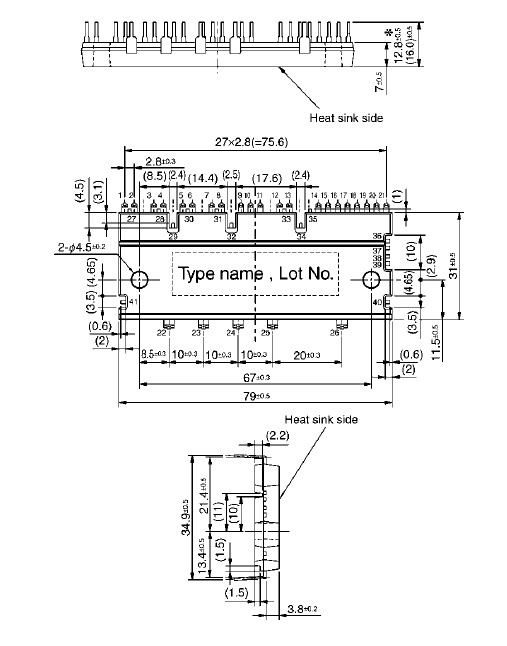

The PS21867-P is a dual-in-line package intelligent power module.

Parametrics

PS21867-P absolute maximum ratings: (1)Isolation voltage: 2500 V; (2)VCES: 600 V; (3)Motor rating: 2.2 KW; (4)IC: 30 A; (5)fC: 20 kHz; (6)VCE(sat)@ Tj=25°C: 1.6 V; (7)Typical switching times,ton: 1.30 μs; trr: 0.30 μs; tc(on): 0.40 μs; toff: 1.70 μs; tc(off): 0.50 μs; (8)IGBT Rth(j-f): 1.65 °C/W; (9)Diode Rth(j-f): 3.0 °C/W.

Features

PS21867-P features: (1)Employing 5th generation planar IGBT chips with 0.6μm design rule or CSTBT technology with superior loss performance; (2)Ultra compact dual or single-in-line transfer mold package (compatible with 2nd generation); (3)Including driver and protection circuitry (UV, SC); (4)DIP-IPM with reduction of thermal resistance by 20%; (5)2500Vrms isolation voltage; (6)High-active interface logic for direct connection to a 3V or 5V MCU; (7)Highest reliability and optimised EMI performance; (8)Available from 3A to 50A / 600V for motor ratings from 0.1kW to 3.7kW; (9)Optional with open emitter topology for vector control; (10)All Mitsubishi DIP and Mini-DIP-IPMs have lead-free terminals; (11)From January 2006 onwards, all DIP and Mini-DIP-IPMs will be supplied with completely lead-free technology.
