Product Summary
The r5f21264n104fp is a MCU. The device is fabricated using a high-performance silicon gate CMOS process, embedding the R8C/Tiny Series CPU core, and are packaged in a 52-pin molded-plastic LQFP or a 64-pin molded-plastic FLGA. The r5f21264n104fp implements sophisticated instructions for a high level of instruction efficiency. With 1 Mbyte of address space, the r5f21264n104fp is capable of executing instructions at high speed. Applications of it are electronic household appliances, office equipment, audio equipment, consumer products, etc.
Parametrics
r5f21264n104fp absolute maximum ratings: (1)VCC/AVCC Supply voltage: -0.3 to 6.5 V; (2)VI Input voltage: -0.3 to VCC + 0.3 V; (3)VO Output voltage: -0.3 to VCC + 0.3 V; (4)Pd Power dissipation Topr = 25℃: 500 mW; (5)Topr Operating ambient temperature: -20 to 85 (N version) /-40 to 85 (D version)℃; (6)Tstg Storage temperature: -65 to 150 ℃.
Features
r5f21264n104fp features: (1)Master mode: Generates Synch Break; Detects bus collision; (2)Slave mode: Detects Synch Break; Measures Synch Field; Controls Synch Break and Synch Field signal inputs to UART0; Detects bus collision.

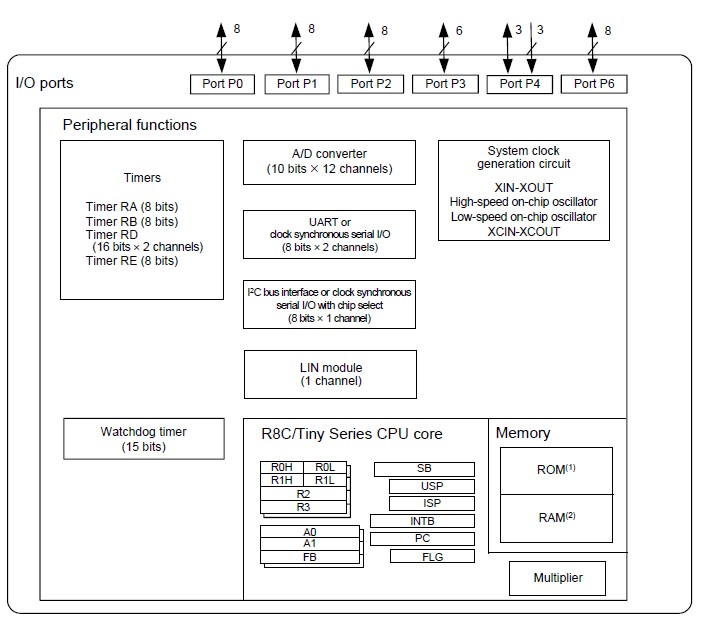

Diagrams
