Product Summary
The r5f212a8sdfp#uo is a MCU. The device is fabricated using a high-performance silicon gate CMOS process, embedding the R8C/Tiny Series CPU core, and are packaged in a 52-pin molded-plastic LQFP or a 64-pin molded-plastic FLGA. The r5f212a8sdfp#uo implements sophisticated instructions for a high level of instruction efficiency. With 1 Mbyte of address space, the r5f212a8sdfp#uo is capable of executing instructions at high speed. Applications of it are electronic household appliances, office equipment, audio equipment, consumer products, etc.
Parametrics
r5f212a8sdfp#uo absolute maximum ratings: (1)VCC/AVCC Supply voltage: -0.3 to 6.5 V; (2)VI Input voltage: -0.3 to VCC + 0.3 V; (3)VO Output voltage: -0.3 to VCC + 0.3 V; (4)Pd Power dissipation Topr = 25℃: 500 mW; (5)Topr Operating ambient temperature: -20 to 85 (N version) /-40 to 85 (D version)℃; (6)Tstg Storage temperature: -65 to 150 ℃.
Features
r5f212a8sdfp#uo features: (1)Master mode: Generates Synch Break; Detects bus collision; (2)Slave mode: Detects Synch Break; Measures Synch Field; Controls Synch Break and Synch Field signal inputs to UART0; Detects bus collision.

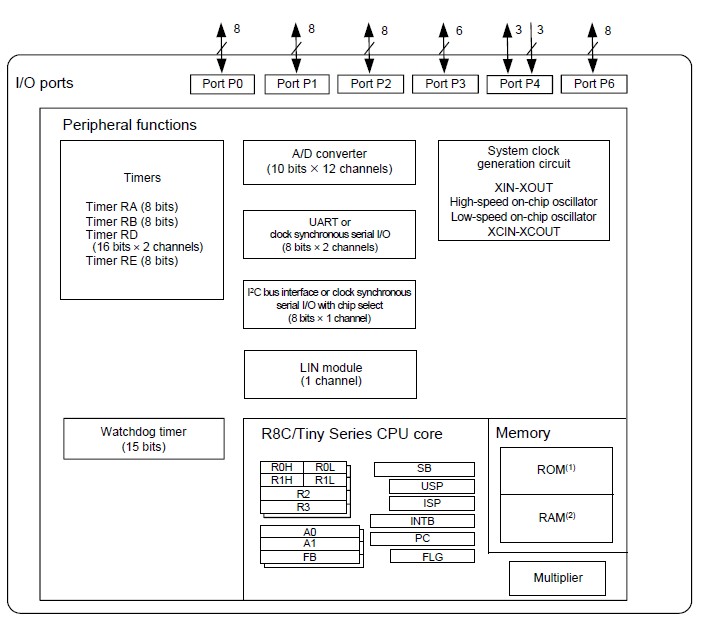

Diagrams
