RY612012

RY612012, general purpose relay, 8 A, 100 g, 4.5 ms, DIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.30~2.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	2.50 / Piece
101 ~ 500 :	2.40 / Piece
501 ~ 1000 :	2.30 / Piece

PartNumber:: RY612012

Brand:: schneider electric - schneider | Pack: | D/C:

Availability:: Supply Ability: 8000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Dannie's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-08-18

From Other Seller

Part Number:RY612012
US $2.30 - 2.50
Quantity:

piece

Product Summary

The ry612012 is a general purpose relay. Applications: heating control, interface technology, domestic appliances, timers, temperature control.

Parametrics

ry612012 absolute maximum ratings: (1)Rated current: 8 A; (2)Rated voltage / max. switching voltage AC: 250/400 VAC; (3)Maximum breaking capacity AC: 2000 VA; (4)Ambient temperature range: -40 to +70°C; (5)Ambient temperature max.: 85°C at 6A; (6)Operate- / release time typ.: 7 / 3 ms; (7)Bounce time NO / NC contact typ.: 2.5 / 4.5 ms; (8)Vibration resistance (function)NO / NC contact: 20 / 5 g; (9)Shock resistance (function)NO / NC contact: 20 / 5 g; (10)Shock resistance (destruction): 100 g.

Features

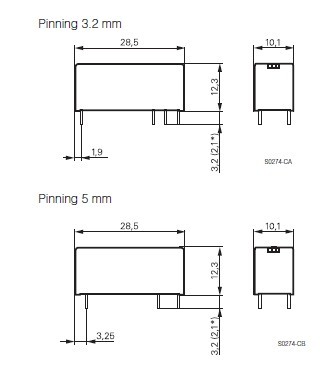

ry612012 features: (1)1 pole 8 A, 1 CO or 1 NO or 1 NC contact; (2)Low component height 12.3 mm; (3)5 kV / 8 mm coil-contact; (4)Reinforced insulation (protection class II); (5)Pinnings: 3.2 and 5 mm; (6)reflow-solderable version; (7)Sockets with PCB-type terminals; (8)Especially suitable for resistive and inductive loads on NO and NC contacts; (9)Plastic materials according to IEC60335-1 (domestic appliances)(not at reflow-solderable version); (10)RoHS compliant (Directive 2002/95/EC)as per product date code 0403.
