Product Summary

The s-93c56bd0h-j8t2gd is a high speed, low current consumption, 1/2/4 K-bit serial E2PROM with a wide operating voltage range. The s-93c56bd0h-j8t2gd is organized as 64-word × 16-bit, 128-word × 16-bit, 256-word × 16-bit, respectively. Each is capable of sequential read, at which time addresses are automatically incremented in 16-bit blocks. The instruction code of the s-93c56bd0h-j8t2gd is compatible with the NM93CS46/56/66.

Parametrics

s-93c56bd0h-j8t2gd absolute maximum ratings: (1)Power supply voltage, VCC: -0.3 to +7.0 V; (2)Input voltage, VIN: -0.3 to VCC +0.3 V; (3)Output voltage, VOUT: -0.3 to VCC V; (4)Operating ambient temperature, Topr: -40 to +105 ℃; (5)Storage temperature, Tstg: -65 to +150 ℃.

Features

s-93c56bd0h-j8t2gd features: (1)Low current consumption Standby: 1.5 μA Max.; (2)Wide operating voltage range Read: 1.8 to 5.5 V; (3)Sequential read capable; (4)Write disable function when power supply voltage is low; (5)Function to protect against write due to erroneous instruction recognition; (6)Endurance: 10 cycles/word*1 (at +25 ℃) write capable; (7)Data retention: 10 years; (8)S-93C56B: 2 K-bit NM93CS56 instruction code compatible; (9)High-temperature operation: +105 ℃ Max. supported; (10)Lead-free products.

Diagrams

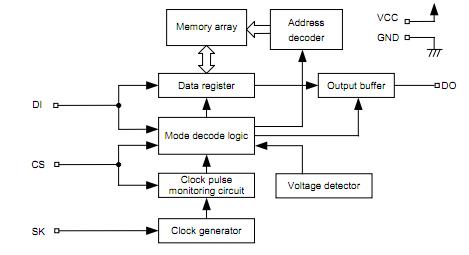

s-93c56bd0h-j8t2gd block diagram
