SAE800

single-tone, dual-tone or triple-tone gong IC, 750mA, 24V, DIP/SMD

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.20~2.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	2.50 / Piece
101 ~ 800 :	2.40 / Piece
801 ~ 1600 :	2.20 / Piece

PartNumber:: SAE800

Brand:: eupec GmbH - infineon | Pack: | D/C:

Availability:: Supply Ability: 8000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Dannie's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-23

From Other Seller

Part Number:SAE800
US $2.20 - 2.50
Quantity:

piece

Product Summary

The sae800 is a single-tone, dual-tone or triple-tone gong IC designed for a very wide supply voltage range. If the oscillator is set to f0=13.2 kHz for example, the sae800will issue in triple-tone-mode the minor and major third e2-C sharp-a, corresponding to 660Hz-550 Hz-440Hz, in dual-tone-mode the minor third e2-C sharp, and single-tone-mode the tone e2. When it is not triggered, the sae80 is in a standby state and only draws a few μA. The sae800 comes in a compact P-DIP-8-1 or P-DSO-8-1 (SMD) package and only requires a few external components.

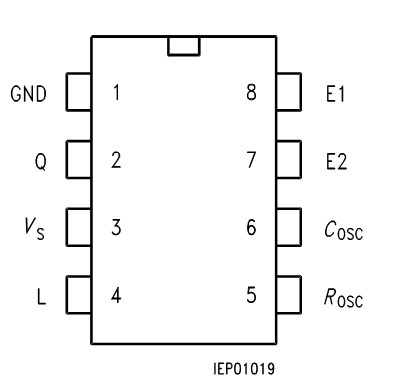

Parametrics

sae800 absolute maximum ratings: (1) Supply voltage VS: -0.3 to 24V; (2) Input voltage at E1, E2 VE1,E2: -5 to 24V; (3) Current at output Q, IQ: -50 to 750mA, Current at input pins E1, E2, IE1, E2: -2 to 3mA; (4) Current at pin ROSC IR: -300 to 200μA; (5) Current at pin L IL: -300 to 200μA; (6) Current at pin COSC IC: -200 to 200μA; (7) Junction temperature Tj: -50 to 150°C; (8) Storage temperature Tstg: -50 to 150°C.

Features

sae800 features: (1) Supply voltage range 2.8 V to 18V; (2) Few external components (no electrolytic capacitor) ; (3) 1 tone, 2 tones, 3 tones programmable; (4) Loudness control; (5) Typical standby current 1μA; (6) Constant current output stage (no oscillation) ; (7) High-efficiency power stage; (8) Short-circuit protection; (9) Thermal shutdown.
