Product Summary
The saf-xc888cm-8ffi5v is an 8-Bit Single-Chip Microcontroller. It features devices with different configurations, program memory sizes, package options, temperature and quality profiles(Automotive or Industrial), to offer cost-effective solutions for different application requirements.
Parametrics
saf-xc888cm-8ffi5v absolute maximum ratings: (1)Ambient temperature: -40 to 125 °C; (2)Storage temperature: -65 to 150 °C; (3)Junction temperature: -40 to 150 °C; (4)Voltage on power supply pin with respect to VSS: -0.5 to 6 V; (5)Input current on any pin during overload condition: -10 to 10 mA.
Features
saf-xc888cm-8ffi5v features: (1)Power-on reset generation; (2)Brownout detection for core logic supply; (3)On-chip OSC and PLL for clock generation: PLL loss-of-lock detection; (4)Power saving modes: slow-down mode, idle mode, power-down mode with wake-up capability via RXD or EXINT0, clock gating control to each peripheral; (5)Programmable 16-bit Watchdog Timer (WDT); (6)Six ports: 34/48 pins as digital I/O, 8 pins as digital/analog input; (7)8-channel, 10-bit ADC; (8)Four 16-bit timers: Timer 0 and Timer 1 (T0 and T1), Timer 2 and Timer 21; (9)Multiplication/Division Unit for arithmetic operations (MDU); (10)CORDIC Coprocessor for computation of trigonometric, hyperbolic and linear functions; (11)MultiCAN with 2 nodes, 32 message objects (MCAN); (12)Capture/compare unit for PWM signal generation (CCU6); (13)Two full-duplex serial interfaces (UART and UART1); (14)Synchronous serial channel (SSC).

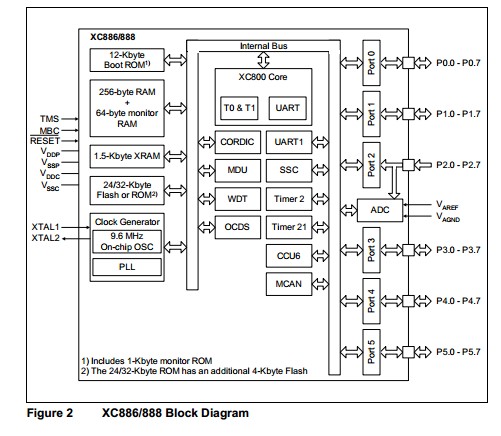

Diagrams
