Product Summary
The sil9134ctu is a lcd module.
Parametrics
sil9134ctu absolute maximum ratings: (1)Logic Circuit Supply Voltage VDD-VSS : -0.3 to 7.0 V; (2)LCD Driving Voltage VDD-VO: -0.3 to 10.0 V; (3)Input Voltage: VI -0.3 to VDD+0.3 V; (4)Normal temp. type Operating Temp. TOP: 0 50 °C; (5)Storage Temp. TSTG -20 to 70 °C; (6)Extended temp. type Operating Temp. TOP -20 to 70 °C; (7)Storage Temp. TSTG -30 to 80 °C .
Features
sil9134ctu features: (1)Display format : 16 characters × 2 lines; (2)Construction : HTN/STN LCD panel, Bezel, Zebra and PCB.; (3)Optional Array LED or EL back-light, white edge LED.; (4)Controller : KS0066U or Equivalent.; (5)5V single power input. (Special request for 3.3V driving, built-in DC/DC converter.); (6)Normal / Extended temperature type.; (7)Excellent LC : VOP maintains at 5V for whole temp. range, no need extra temp. compensation circuit.

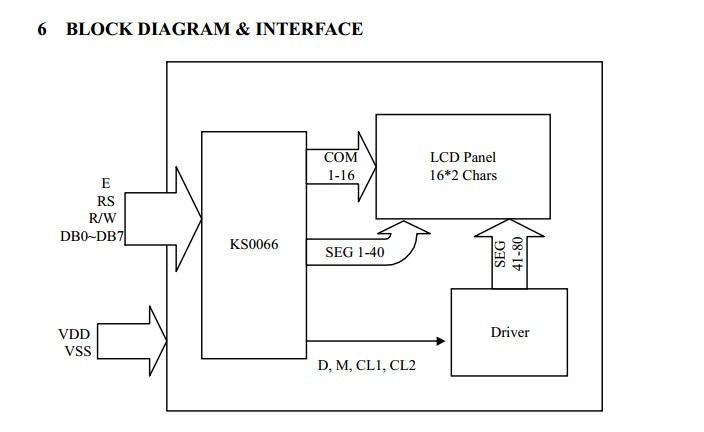

Diagrams
