Product Summary

The smq32s is a SMD Tuning Fork Crystal.

Parametrics

smq32s absolute maximum ratings: (1)frequency: 32.768 kHz (30.0 ~ 80.0 kHz on request); (2)frequency tolerance at 25 °C ±5 °C: ±30 ppm; (3)load capacitance CL: 12.5 pF (6 pF ~ 12.5 pF); (4)temperature constant: -0.04 · 10-6 /°C2max; -0.034 · 10-6 /°C2typical ; (5)frequency temperature characteristic: f (ppm) = -0.04 ( 25 °C - T )2, T = requested temperature ; (6)operating tenperature range: -20 °C ~ +70 °C / -40 °C ~ +85 °C; (7)shunt capacitance Co: 1.75 pF typical; (8)series resistance max. ( ESR ): 50 kΩ; (9)storage temperature: -40 °C ~ +90 °C; (10)drive level max: 1 μW; (11)aging first year: < ±3 ppm.

Features

smq32s features: (1)32.768 kHz standard; (2)reflow soldering temperature: 260 °C max; (3)package height 3.0 mm max.

Diagrams

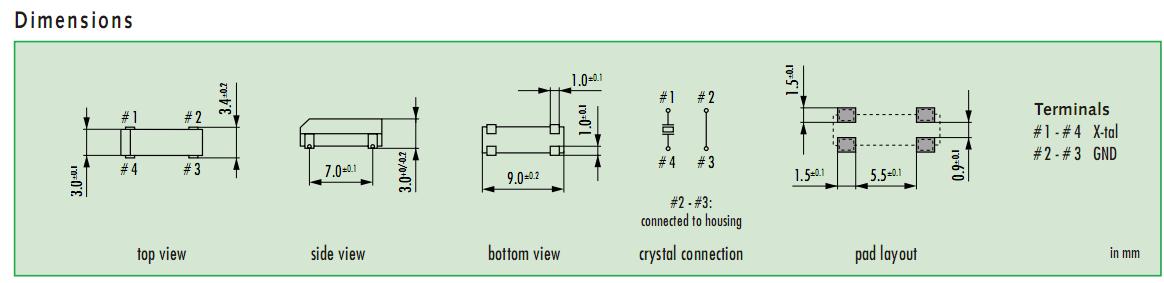

smq32s dimensions
