Product Summary
The sn74ls95 is a 4-bit parallel access shift register. It features parallel and serial inputs, parallel outputs, mode control, and two clock inputs. It has three mode operations parallel load, shift right, and shift left.
Parametrics
sn74ls95 absolute maximum ratings: (1)input voltage: VIH 2.0V, VIL 0.8V; (2)output voltage: VOH 2.7V, VOL 0.4V-0.5V; (3)input current: IIH 20μA, IIL -0.4mA, II 0.1A; (4)short circuit output current IOS: -20 to -100 mA; (5)supply current ICC: 13-21mA; (6)input clamp voltage VIK: -1.5V.
Features
sn74ls95 features: (1)Maximum cloc frequency: 25 MHz min., 36 MHz typ.; (2)Propagetion delay time tplh: 18 ns typ., 27 ns max.; (3)Progagetion delay time tphl: 21 ns typ., 32 ns max.; (4)CL = 15pF; (5)RL = 2kΩ.

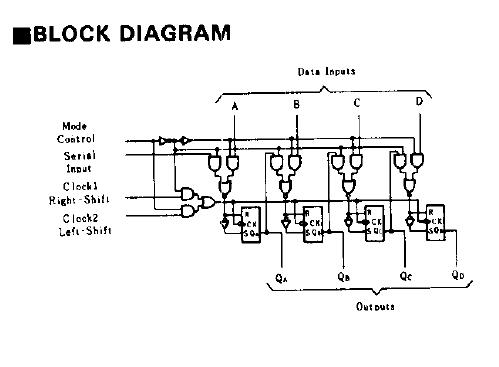

Diagrams
