Product Summary
The sp14q003-c1 is a Lcd Panel.
Parametrics
sp14q003-c1 absolute maximum ratings: (1)Power Supply for Logic, VDD-VSS: 0 to 6.0 V; (2)Power Supply for LC Drive, VDD-VEE: 0 to 27.5 V; (3)Input Voltage, Vi: -0.3 to VDD+0.3 V; (4)Input Current, Li: 0 to 1 A; (5)Static Electricity, VESD0: ±100 V.
Features
sp14q003-c1 features: (1)Power Supply Voltage for Logic, VDD-VSS: 5.0-5% to 5.0+5% V; (2)Power Supply Voltage for LC Driving, VEE-VSS: -23.1 to -20.9 V; (3)Input Voltage, VI: 0.8 V; (4)Power Supply Current, IDD: 6.0 mA; (5)Power Supply Current, IEE: 5.0 mA; (6)Recommended LC Driving Voltage, VDD-V0: 22.0 V; (7)Frame Frequency, fFRAME: 70 to 80 Hz.

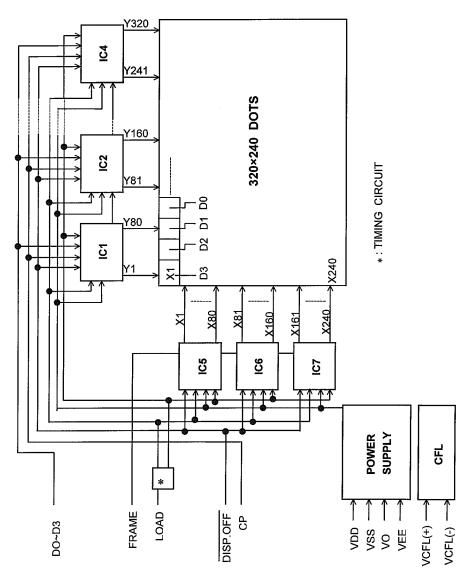

Diagrams
